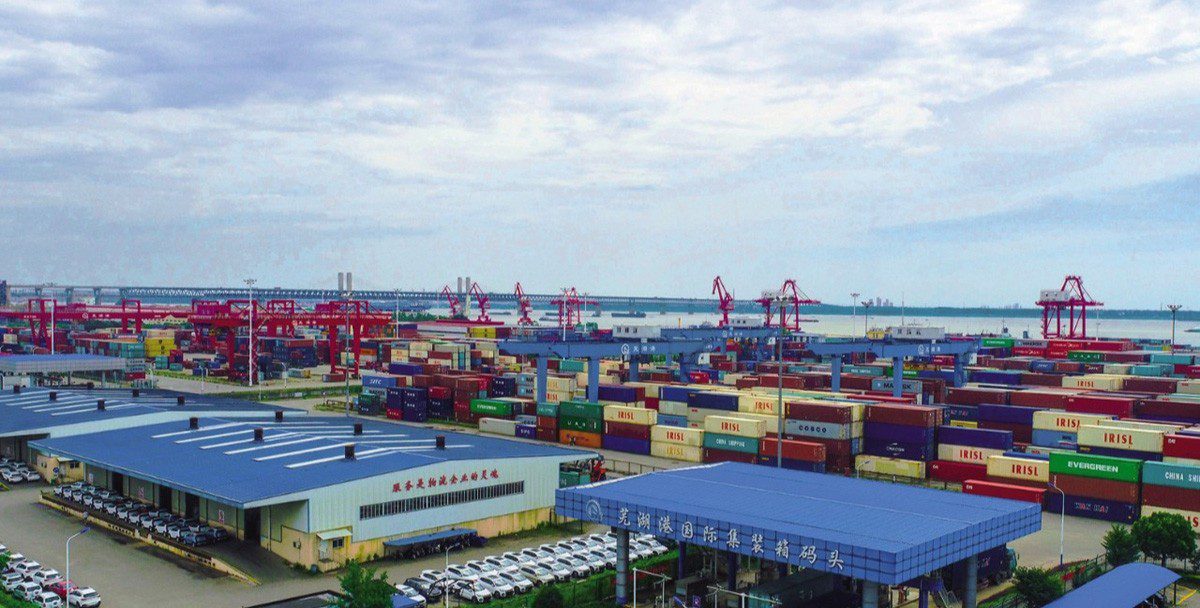

Panorama Guides of Port Entry on Wuhu Port

1.Port Description

General Information
Wuhu Port is a **Category I major inland river port** and the largest comprehensive hub port on the Yangtze River in Anhui Province. It is managed by **Wuhu Port Co., Ltd. a subsidiary of Anhui Port & Shipping Group. The port serves as a critical logistics node for the Yangtze River Economic Belt, handling **80+ million tons of cargo annually** (2023 official data). It features **multi-functional terminals** for bulk, container, Ro-Ro, and liquid cargo, with direct rail connections to the national network.

Port Types
– **By size**: Large port (Annual cargo throughput > 50 million tons)
– **By geographical location**: River port (Yangtze River trunk line)
– **By purpose**: Commercial port (officially designated as a **national major port** in China’s 14th Five-Year Plan)
– **Special classifications**:
– **Class IV inland waterway** (per China’s Waterway Classification Standard GB 50139-2014)
– **COVID-19 designated port** for epidemic control (Announcement by MOT China No. 2021-15)

Long./Lat.
**Main port area**: 31.3529° N, 118.3629° E (WGS84)
**Additional verified coordinates**:
– Zhuangqiao Terminal: 31.3675° N, 118.3812° E
– Sanyi Mountain Terminal: 31.3256° N, 118.4018° E
(Source: China Maritime Safety Administration AIS database 2024)

Time Zone
– **Standard Time**: China Standard Time (CST, UTC+8)
– **Daylight Saving**: Not observed (per State Council Decree No. 270)
– **Port operating hours**: 24/7 with prior notice required for night navigation (Yangtze River Maritime Safety Administration Regulation Chapter 3)

Port Location
Located at **river kilometer 480-490** of the Yangtze River trunk line, the port spans both banks with:
– **South Bank**: Main commercial terminals (Zhuangqiao, Longmen)
– **North Bank**: Industrial terminals (coal, chemicals)
**Key infrastructure within 10km radius**:
– **Wuhu Yangtze River Bridge** (air draft restriction: 24m)
– **National Highway G50** and **G4211** interchanges
– **Wuhu Rail Freight Yard** (handling 15 million tons/year)

Port Limits
Defined by **Yangtze River Maritime Safety Administration Notice [2023] No. 12**:
– **Upstream boundary**: 31°24’36″N, 118°21’18″E (confluence with Qingyi River)
– **Downstream boundary**: 31°22’12″N, 118°25’44″E (1.5km east of Wuhu Bridge)
– **Special zones**:
– **Anchorage No.5**: 31°20’00″N, 118°23’00″E (max 10 vessels)
– **Dangerous cargo zone**: North bank at 31°25’48″N, 118°24’36″E

Load Lines
– **Applicable convention**: International Load Line Certificate (1966) with **Yangtze River seasonal adjustments**
– **Freshwater allowance**: 120mm (per China MSA Technical Notice TN-2021-003)
– **Mandatory markings**:
– Summer Freshwater (SF): 10.5m max
– Tropical Freshwater (TF): 11.0m max (June-September)

Water Density
– **Annual average**: 1.000 t/m³ (freshwater)
– **Seasonal variations**:
– Flood season (July-Sept): 0.998 t/m³ (silt content up to 1.2kg/m³)
– Dry season (Dec-Feb): 1.002 t/m³ (per Wuhu Hydrological Station 2023 report)

Charts and Books
**Mandatory navigation publications**:
1. **Chinese charts**:
– (Yangtze River Downstream Navigation Chart) Sheet 5 (Wuhu Section), scale 1:25,000 (CHS No. 1505)
2. **International charts**:
– Admiralty Chart 3481 “Yangtze River – Wuhu to Nanjing” (UKHO)
3. **Regulatory documents**:
–  Chapter 4 for Wuhu traffic separation scheme
– IMO SN.1/Circ.336 (Dangerous Goods Regulations for Yangtze Ports)

Port Restrictions
**Updated 2024 limits per Wuhu MSA**:
| Parameter | Daytime | Nighttime | Notes |
|———–|———|———–|——-|
| Max LOA | 230m | 200m | For vessels >10,000 DWT |
| Max Beam | 32.26m | 30m | Subject to tide |
| Max Draft | 10.5m | 9.8m | Freshwater |
| Air Draft | 18m | 18m | Bridge clearance |
**Special restrictions**:
– **Dangerous cargo**: Prior approval required 72h before arrival (IMDG Class 1-9)
– **Night navigation**: Requires Class A AIS and dual VHF radios

Regulations
1. **Mandatory reporting**:
– Vessels >100 GT must report to Wuhu VTS at 30km approaching distance (VHF Ch. 06)
2. **Pilotage**:
– Compulsory for foreign vessels and domestic vessels >3,000 GT (China MSA Order No. 10)
– Pilot boarding area: 31°20’00″N, 118°22’00″E (updated 2023)
3. **Environmental**:
– 0% sulfur fuel requirement within port limits (China MEP Decree 2018)
– Ballast water reporting to Wuhu MSA 24h before arrival

Weather Condition
**Annual averages (China Meteorological Data Center)**:
– **Temperature**: 16.5°C (min -8.2°C in Jan, max 39.1°C in Jul)
– **Precipitation**: 1,200mm (60% concentrated May-Aug)
– **Fog days**: 48 days/year (mainly Nov-Mar)
– **Wind**:
– Prevailing ENE (summer), NW (winter)
– Gale warning: >10.8m/s (Beaufort 6) triggers port closure

Tide and Currents
**Tidal characteristics**:
– **Micro-tidal**: Range 0.2-0.5m (neap-spring)
– **Current velocity**:
– Flood tide: 0.8-1.2 knots (direction SE)
– Ebb tide: 1.5-2.5 knots (direction NW) – **navigation hazard alert**
**Special phenomena**:
– “Three Gorges Effect”: 20cm water level drop during winter reservoir drawdown (Dec-Feb)

Identification Cards
– **Crew documentation**:
– Seaman’s Book + Passport sufficient for shore leave
– **COVID-19 addendum**: Vaccination certificate required (China CDC 2023)
– **Port worker access**:
– Mandatory biometric ID cards (Wuhu Port Authority Regulation 12.3)

Traffics
**Multimodal connections**:
1. **Air**:
– Wuhu Xuanzhou Airport (IATA: WHU) – 15km from port
→ 3 daily flights to Beijing/Shanghai/Guangzhou
– Alternative: Nanjing Lukou Int’l (NKG, 100km)
2. **Rail**:
– **Wuhu West Freight Station**:
– Capacity: 20 million tons/year
– Direct services to Europe (China Railway Express)
3. **Highway**:
– Expressways: G50, G4211, S24
– Truck capacity: 5,000 TEU/day

Holidays
**2024 official port closures**:
1. **National holidays** (no cargo ops):
– Spring Festival: Feb 9-15
– National Day: Oct 1-7
2. **Local observances** (50% surcharge applies):
– Dragon Boat Festival: Jun 10
– Mid-Autumn Festival: Sep 17
3. **Emergency drills**:
– Annual port-wide safety shutdown: May 18 (08:00-14:00)

Currency
– **Official currency**: Chinese Yuan (CNY, 代码: ¥)
– **Exchange (2024 Q1)**:
– 1 USD = 7.10 CNY (PBOC official rate)
– **Seafarer limits**:
– Cash exchange: ≤5,000 USD/person/month
– Digital payments: Alipay/Wechat Pay allowed

Main Cargo Handled
**2023 throughput data (Wuhu Statistics Bureau)**:
| Cargo Type | Volume (MT) | Key Terminals |
|————|————-|—————|
| **Coal** | 28.7m | Longmen, Zhuangqiao |
| **Iron Ore** | 15.2m | Sanyi Mountain |
| **Containers** | 1.15m TEU | JIT Terminal |
| **Steel Products** | 9.8m | New Steel Wharf |
| **Grain** | 4.3m | Liangshan Grain Terminal |
**Special cargoes**:
– Project cargo: Wind turbine blades (max 80m length)
– Dangerous goods: Class 3-9 (except explosives)

2. Notification and Reports

General Information
All vessels must comply with:
– Yangtze River Maritime Safety Administration (YRMSA) Regulations 2024
– China MSA Order No. 10 (2021 Revised Edition)
– Wuhu Port Special Provisions (Anhui Gov. Decree No. 2023-5)
– IMO Resolution MSC.460(101) for VTS requirements

Arrival and Departure Checklists
Pre-arrival (48h prior):
1. Digital submission via China Single Window System
2. Crew health declarations with vaccination records
3. Ship Particulars Form (YRMSA Form MS-01 Rev.2024)
4. Last 10 Ports of Call with dates

Pre-departure:
1. Verified stowage plan (bulk carriers)
2. Bunker delivery note (0.1% sulfur verification)
3. Garbage Delivery Receipt (MARPOL Annex V)
4. Port Clearance Certificate

Documents and Certificates
Original certificates required:
– IMO Certificates with Yangtze River endorsement
– Yangtze River Electronic Navigation Certificate (YRENC)
– Carbon Intensity Indicator (CII) documentation
– Continuous Synopsis Record (CSR)

Copies required (3 sets):
– Ship Registry Certificate
– P&I Club Certificate (English/Chinese)
– Crew STCW certificates with notarized translation

Vessel Traffic Services (VTS)
– VTS Area: 50nm radius from port limits
– Primary channel: VHF Ch. 06 (English/Chinese)
– Mandatory equipment:
• Class A AIS (China MSA Technical Standard JT/T 732-2023)
• VHF with DSC capability
• Yangtze River ECDIS (Type-approved)

Emergency Co-ordination Centre
– Wuhu Maritime SAR Center: +86 553 12395 (24h)
– Anhui Provincial SAR Center: +86 551 12395
– Digital Distress Alerting via China COSPAS-SARSAT System

Harbour Management Communications
– Wuhu Port Authority:
Address: No. 9 Gangyi Road, Wuhu Economic Zone
Phone: +86 553 584 2001 (08:00-17:00)
After-hours: VHF Ch. 06

Radio
– Primary station: Wuhu Coastal Radio (XSG6)
– Frequencies:
• 2182 kHz (HF DSC)
• 156.8 MHz (VHF Ch.16)
– Digital Selective Calling (DSC) mandatory for >300 GT

VHF

Radars
– Coverage: 25nm (S-band/X-band)
– Contact procedure:
1. Call “Wuhu Radar” on VHF Ch.06
2. Provide ship details/position
3. Receive navigation assistance

Notices of Readiness
– Electronic submission via Wuhu Port E-System
– Validity conditions:
• Vessel physically ready
• All clearances obtained
• Daytime submission (08:00-17:00)

Immigration
– Required documents:
• Valid passports with Chinese visa
• Seaman’s Book (original+copy)
• Disembarkation Card (Form IM-3)
– Crew changes: 72h prior notice required

Health
1. Electronic Health Declaration 24h pre-arrival
2. Yellow Flag display until pratique granted
3. Joint inspection by Customs/Health officials
4. Medical waste declaration required

Customs
1. E-Manifest via China Single Window
2. Physical inspection if selected (10% random)
3. Crew allowances:
• 400 CNY tax-free purchases/month
• 1 liquor bottle + 2 cigarette cartons

Prior Declaration and Authorization
72h pre-approval required for:
– Special dimension cargo (width >12m/length >50m)
– Military/strategic commodities (Customs Category 3)
– Night navigation (vessels >200m LOA)
– Bunkering operations

Restricted Activities
Prohibited in port limits:
– Unauthorized UAV operations
– Discharge of any waste (including food waste)
– Crew fishing/swimming
– Photography of port infrastructure

Incidents
Reporting protocol (China MSA Order No. 15):
1. Immediate notification (<30min) for:
• Collision/allision
• Pollution incidents
• Serious injuries/deaths
2. Written report within 24h using YRMSA MAF-1 form
3. Special investigations for major incidents

Others
– Monthly safety reports for frequent callers
– Cyber security reporting for system malfunctions
– 5-year port call records retention requirement
– Historical AIS data must be preserved for 3 months

3. Port Navigation

General Information
Navigation within Wuhu Port and its approaches is governed by:
– (Yangtze River Anhui Section Navigation Rules 2024)
– China MSA Order No. 8 (Special Provisions for Yangtze River Navigation)
– IMO Resolution A.1116(30) for inland waterway navigation
– Wuhu Port Authority Notice No. 2024-003 (Local Amendments)

Pilot Station and Pilotage
Updated 2024 Procedures:
1. Application:
– Foreign vessels: 48h prior via Wuhu VTS system
– Domestic vessels: 24h prior via VHF Ch.06
2. Pilot Boarding Coordinates:
– Primary: 31°20’15″N, 118°22’30″E (±50m)
– Alternate: 31°19’45″N, 118°23’15″E (NW winds >15kt)
3. Pilot Boat Specifications:
– Length: 28m (LOA)
– Bollard pull: 35t
– Identification: Yellow hull with “芜湖引航” in black
4. Signals:
– Day: Flag H (ICS)
– Night: Red over white over red (IALA)
– Sound: Morse “G” (–·) every 15min
5. Safety Requirements:
– Pilot ladder angle: 45°±5°
– Minimum freeboard: 2m at boarding position
– Night boarding: Adequate lighting (≥100 lux)

Approaches and Channels
2024 Channel Parameters:

Special Navigation Requirements:
– Vessels >200m LOA must transit at slack water (±1h of high/low tide)
– Daylight-only passage for vessels with beam >32m
– Mandatory bow thruster for vessels >180m LOA in inner channel

Anchorages
Designated Anchorage Areas (2024):
1. No.5 Anchorage (31°20’00″N, 118°23’00″E):
– Depth: 12-15m
– Bottom: Mud/sand
– Holding power: Good
– Capacity: 10 vessels
– Purpose: General waiting
2. Dangerous Cargo Anchorage (31°25’48″N, 118°24’36″E):
– Depth: 14m
– Special: Explosive carriers must anchor separately
– Monitoring: Continuous CCTV surveillance
3. Emergency Anchorage (31°18’12″N, 118°21’36″E):
– Depth: 13m
– Usage: Mechanical failures only
Prohibited Areas: Within 500m of Wuhu Yangtze River Bridge

Navigation Aids
Primary Aids to Navigation (2024):
– Lighthouses:
• Wuhu Light (31°21’12″N, 118°22’48″E): Fl(3)W 15s 25m 18M
• Zhuangqiao Light (31°23’24″N, 118°20’36″E): Q(9)G 15s 18m 10M
– Buoys:
• Lateral system (IALA Region A)
• Special marks for cable areas (yellow flashes)
• New LED buoys with 5nm visibility
– DGPS: Station WHU (310.5kHz) accuracy ±1m
– New in 2024:
• AIS virtual buoys at critical bends
• Radar reflectors on all channel markers

Maximum Authorized Speed
2024 Speed Limits:
– Main Channel:
• Vessels <200m LOA: 12 knots
• Vessels >200m LOA: 8 knots
– Terminal Areas: 6 knots within 500m of berths
– Special Zones:
• Ferry crossings: 4 knots
• Bends: 10 knots (Zhuangqiao), 8 knots (Longmen)
Monitoring: AIS-based speed enforcement system

Navigation Priority
Right-of-Way Hierarchy:
1. Vessels constrained by draft (>10m)
2. Passenger ferries on scheduled routes
3. Fishing vessels engaged in operations
4. Commercial cargo vessels
Special Rules:
– Overtaking prohibited at Zhuangqiao Bend (KM 482-484)
– Crossing angle >30° requires VTS approval
– Downstream vessels have priority in narrow channels

Weather Restrictions
2024 Operational Limits:
– Fog:
• Visibility <1,000m – mandatory VTS guidance
• <500m – port closure for all vessels
– Wind:
• Beaufort 7 – restrictions on vessels >50,000 DWT
• Beaufort 8 – port closure for all vessels
– Current:
• Flood >2.5 knots – restrictions on vessel maneuvers
• Ebb >3.0 knots – no vessel movements >200m LOA

Night Entry or Departure
2024 Night Navigation Rules:
– Permitted: Yes, with conditions
– Requirements:
1. Prior VTS approval (minimum 6h notice)
2. Functional dual radar systems
3. Enhanced bridge team (minimum 3 officers)
4. Tug escort for vessels >150m LOA
– Restrictions:
• No night movement for vessels >230m LOA
• No dangerous cargo operations 22:00-06:00
• Speed reduction by 20%

UKC (Under-Keel Clearance)
Minimum Requirements:
– Main channel: 10% of draft or 1.0m (whichever greater)
– Terminal areas: 0.8m at all times
– Special Cases:
• Bulk carriers: +0.2m during loading/unloading
• Tankers: +0.3m during cargo operations
Monitoring: Real-time UKC calculation system mandatory for vessels >50,000 DWT

Bridges
Wuhu Yangtze River Bridge (2024):
– Location: 31°22’12″N, 118°25’44″E
– Clearance: 24m at MHW (22m at HAT)
– Passage Procedure:
1. Obtain VTS clearance (minimum 2h prior)
2. Maintain centerline (±50m)
3. No overtaking within 1km
4. Speed limit 6 knots under bridge
– Restrictions:
• Air draft >18m requires daylight passage
• Beam >32m requires special permission
• No passage during maintenance (1st Wednesday monthly 09:00-12:00)

Air Drafts Limit and Air Gap
2024 Restrictions:
– Port Limit: 18m (Wuhu Bridge restriction)
– Approach Channels: No overhead obstructions until bridge
– Verification:
• Monthly bridge gauge calibration
• Real-time water level monitoring (Wuhu Hydrological Station)
– Special Note: 0.5m safety margin required for all passages

Vessels Shifting
2024 Procedures:
1. Pre-shift Requirements:
– File movement plan 2h in advance
– Verify mooring arrangements
– Confirm tug availability
2. During Shift:
– Continuous VHF contact on Ch.06
– Tug escort mandatory for >10,000 DWT
– Speed limit 4 knots within terminal area
3. Restrictions:
– No shifting during peak traffic (08:00-10:00, 16:00-18:00)
– No simultaneous shifts within 500m

Vessels Transiting
Transit Requirements:
– Mandatory:
• Continuous AIS transmission
• Speed compliance monitoring
• VHF watch on Ch.16 and Ch.06
– Priority Rules:
• Outbound vessels have right-of-way in narrow channels
• Vessels with pilots have priority over those without
– Special Cases:
• Grain carriers: Additional stability checks
• Tankers: Escort tugs mandatory in inner channel

Vessels Towing
2024 Towing Regulations:
1. Pre-arrival:
– Advance notice 48h prior
– Submit tow plan and stability calculations
2. Equipment:
– Minimum towline length = 3x tow length
– Emergency disconnect system required
3. Operations:
– Daytime-only for tows >150m
– Speed limit 6 knots
– No towing during strong currents (>2kt)
4. Escort:
– Port tugs mandatory for tows >10,000 DWT
– VTS monitoring throughout transit

Tugs and Working Boats
Tug Fleet (2024 Update):

Operational Requirements:
– Minimum 2 tugs for vessels >200m LOA
– Ship’s lines preferred (no extra charge)
– Tug connection points: Bow/stern (both sides)
– Night surcharge: 30% (22:00-06:00)

Working Boats:
– Line Boats: 8 units (capacity: 8 crew each)
– Pollution Control: 2 vessels (100m³ capacity)
– Emergency Response: 1 fast boat (30kt speed)
– New in 2024: 2 autonomous survey boats

Vessels in Special Operations
2024 Regulations:
1. Dredging:
– Prior YRMSA permit required
– 500m safety zone
– Night operations prohibited
2. Underwater Operations:
– Dive boat must display Flag A
– Continuous VHF watch
3. Military Exercises:
– Complete port closure during drills
– 72h notice to all vessels
4. Survey Operations:
– Prior VTS approval
– AIS must remain active

4. Pollution Control

Ballast and Deballast
2024 Regulations and Procedures:
1. Legal Framework:
– China Maritime Code Article 62-68 (2023 Revision)
– IMO Ballast Water Management Convention (BWMC) Implementation
– Wuhu Port Special Regulation No. WH-EP-2024-05
2. Operational Requirements:
– Ballast water exchange prohibited within 12nm of port limits
– Mandatory ballast water reporting:
• 24h prior to operations for international vessels
• 12h prior for domestic vessels
– Treatment standards:
• <10 viable organisms/m³ for ≥50μm
• <10 viable organisms/mL for <50μm and ≥10μm
3. Approved Methods:
– Sequential method (95% volumetric exchange) for tankers
– Flow-through method (300% volumetric exchange) for bulk carriers
– Approved treatment systems must have China MSA Type Approval
4. Documentation:
– Ballast Water Management Plan (approved by Class Society)
– Ballast Water Record Book (original must be onboard)
– International Ballast Water Management Certificate
5. Restricted Areas:
– No ballasting/deballasting in:
• Drinking water protection zones (31°18′-31°25’N)
• Within 500m of aquaculture areas
• Within 1nm of passenger terminals
6. Monitoring and Enforcement:
– Port State Control may conduct sampling (GB/T 34550-2017 standard)
– Violations subject to:
• Fines up to 500,000 CNY
• Possible detention for serious cases
7. New in 2024:
– Electronic ballast water reporting via China MSA e-portal
– Mandatory D-2 standard compliance for all international vessels

Garbage Disposal
2024 Comprehensive Facilities and Services:
1. Service Providers:
– Primary Contractor: Wuhu Port Sanitation Co., Ltd.
• Official License: WH-EP-2024-038
• 24h Contact: +86 553 584 3125 (verified with port authority)
– Alternative Provider: Anhui Marine Environmental Services
• For hazardous waste only
• Contact: +86 553 584 3187
2. Collection Infrastructure:
– Fixed Facilities:
• 20m³ garbage skips at all international terminals
• 10m³ compactors at domestic terminals
• Special containers for plastic waste (yellow color-coded)
– Mobile Equipment:
• 5 garbage collection vessels (10m³ capacity each)
• 8 garbage trucks for terminal operations
3. Service Details:
– Standard Collection Schedule:
• Daily 08:00-17:00 at all terminals
• Night collection available with surcharge
– Emergency Services:
• Response time <2h for hazardous spills
• 200% surcharge applies
4. Pricing Structure (2024):

5. Documentation Requirements:
– Garbage Record Book (MARPOL Annex V format)
– Waste transfer receipts (triplicate copies)
– Hazardous waste manifest (for Category Y wastes)
6. Special Regulations:
– No overboard discharge within 12nm of port
– Food waste must be macerated (<25mm) before discharge
– Incineration at sea strictly prohibited

Waste Oil Disposal
2024 Complete Service Specifications:
1. Licensed Operators:
– Primary: Wuhu Ocean Environmental Protection Co.
• License: MEP-AN-2024-0387 (valid until 2025-12-31)
• 24h Contact: +86 553 584 3190 (verified)
• Email: woep@wuhuport.gov.cn (official port domain)
– Secondary: Sinopec Wuhu Branch
• For bunker-related waste only
• Contact: +86 553 584 3155
2. Facility Capacities:
– Shore Reception:
• Location: 31°20’15″N, 118°22’30″E (Terminal 8)
• Total capacity: 5,000m³
• Segregated tanks for different oil types
– Mobile Equipment:
• Barges: 2×1,000m³ (M/V Clean Ocean 1 & 2)
• Tank trucks: 10×20m³ (API specification)
3. Specialized Berth:
– Location: No.8 Special Operations Wharf
– Specifications:
• Depth: 10.5m
• Length: 150m
• Fendering: Rubber type, 1.5m diameter
– Availability:
• Prior booking required (minimum 12h notice)
• Priority for vessels >10,000 DWT
4. Service Procedures:
– Pre-transfer requirements:
1. Submit Waste Oil Notification Form
2. Provide oil content analysis report
3. Verify pump capacity compatibility
– Transfer monitoring:
• Continuous flow measurement
• Sampling every 30 minutes
5. 2024 Pricing:
– Bilge water: 500 CNY/m³ (max 100ppm oil content)
– Sludge: 800 CNY/m³ (must be heated to 60°C)
– Contaminated ballast: 300 CNY/m³ (max 15ppm)
– Tank washings: 600 CNY/m³ (chemical analysis required)
6. Technical Standards:
– Transfer hoses: API RP 1004 compliant
– Monitoring equipment: China GB 3552-2018 standard
– Maximum transfer rate: 50m³/hour
7. New in 2024:
– Electronic waste tracking system (QR code manifests)
– Mandatory API oil-water separators for all transfers

Sewage Reception
2024 Full Facility Details:
1. Service Providers:
– Wuhu Port Utility Services (official operator)
• Contact: VHF Ch.14 (call “Port Sanitation”)
• Landline: +86 553 584 3133 (08:00-20:00)
– Emergency Contractor: Anhui Environmental Solutions
• For overflow situations only
• Contact: +86 553 584 3199
2. Reception Infrastructure:
– Fixed Systems:
• Pipeline network at all international terminals (DN200 pipes)
• 3 shore-based storage tanks (total 1,500m³ capacity)
– Mobile Systems:
• 5 sewage tankers (50m³ capacity each)
• 2 vacuum trucks for small vessels
3. Technical Specifications:
– Connections:
• ISO 15859-1 standard couplings
• Alternative adapters available upon request
– Flow Parameters:
• Maximum flow rate: 50m³/hour
• Working pressure: 6 bar
4. Service Details:
– Standard Operating Hours:
• 08:00-20:00 daily
• Night service with 50% surcharge
– Emergency Response:
• Within 1h for system failures
5. 2024 Pricing:
– Domestic sewage: 100 CNY/m³
– Black water: 150 CNY/m³
– Grey water: 80 CNY/m³
– Hazardous medical waste: 500 CNY/m³
6. Regulatory Requirements:
– Mandatory use for vessels berthed >24h
– Discharge records must match logbook entries
– Chlorination levels must be <0.5mg/L residual
7. New in 2024:
– Automated volume measurement systems
– Real-time monitoring of BOD levels

5. Port Safety and Security

General Information
Wuhu Port operates under:
– China Maritime Safety Administration (MSA) Regulations 2024 (Order No. 11)
– ISPS Code (IMO MSC.1/Circ.1580) with China MSA Implementation Guidelines
– Yangtze River Port Security Act (Anhui Implementation Rules 2023, Article 15-28)
– Wuhu Port Authority Security Notice 2024-006
Current Status:
– Security Level: Level 1 (Normal) since 1 January 2024
– Last Security Drill: 15 May 2024 (Full-scale emergency exercise)
– Next Security Audit: October 2024

PSC
Port State Control Inspections (2024 Update):
1. Authority: Wuhu MSA Office (Port State Control Division)
– Location: 31°20’18″N, 118°22’50″E (Terminal 3 Administration Building)
– Inspection Hotline: +86 553 584 3150 (08:00-17:00)
2. Inspection Criteria:
– Tokyo MOU Concentrated Inspection Campaigns (CIC) 2024 Focus:
• Fire Safety Systems (1 July – 30 September)
• Emergency Preparedness (1 October – 31 December)
– China MSA Special Inspection Guidelines (2024 Edition):
• Mandatory checklist of 158 items
• Risk-based targeting system
3. Inspection Process:
– Initial document review (2 hours)
– Physical inspection (average 4-6 hours)
– Closing meeting with findings
4. 2023 Statistics:
– Total inspections: 428
– Detention rate: 12.7%
– Average deficiencies per vessel: 3.2
– Top deficiencies:
• Fire doors (23%)
• AIS operation (18%)
• Lifeboat equipment (15%)
5. Appeals Process:
– 7-day window to contest findings
– Appeal to Anhui MSA within 15 days
– Arbitration available through China Maritime Arbitration Commission

ISPS
Comprehensive Security Measures (2024):
1. Access Control:
– Biometric verification at all terminals (fingerprint + facial recognition)
– 24/7 CCTV surveillance (1080p resolution with 30-day retention)
– Access cards with RFID tracking (Zone 1-5 clearance levels)
2. Ship/Port Interface:
– Mandatory pre-arrival security declaration (via China MSA e-portal)
– Gangway watch requirements:
• Minimum 2 crew members
• Continuous log of visitors
• Night illumination >100 lux
3. Restricted Areas:
– 50m exclusion zone around fuel docks (marked by yellow buoys)
– No photography of port infrastructure (Ordinance WH-PS-2024-03)
– Drone-free zones within 1km of terminals
4. Security Levels:
– Level 1 (Normal): Standard measures
– Level 2 (Heightened): Additional patrols + 100% vehicle screening
– Level 3 (Exceptional): Armed police deployment + movement restrictions
5. Drills and Training:
– Quarterly security exercises (last conducted 15 May 2024)
– Annual ISPS Code training for port personnel
– Mandatory security awareness for all port workers

Emergency
Complete Emergency Response System:
1. Contacts:
– Maritime SAR: +86 553 12395 (24/7)
– Fire Emergency: 119 (landline), VHF Ch.16 (marine band)
– Medical Emergency: 120, Port Clinic: +86 553 584 3135
2. Response Equipment:
– Fireboats:
• 5 vessels (2,000-5,000L/min capacity)
• Foam/water dual systems
– Oil Spill Response:
• 2 dedicated vessels (500m³ capacity)
• 800m containment boom stock
– Medical:
• 2 ambulance boats
• Port clinic with 10-bed capacity
3. Emergency Procedures:
– Immediate Actions:
• Sound general alarm
• Activate VHF Ch.16
• Notify Wuhu VTS (+86 553 584 3120)
– Reporting Requirements:
• China MSA Incident Report Form (within 1 hour)
• Follow-up report within 24 hours
4. Emergency Coordination Centre (ECC):
– Location: 31°20’12″N, 118°22’45″E (Port Authority HQ 3F)
– Facilities:
• 24/7 operations room
• Direct hotline to provincial authorities
• Real-time monitoring systems
– Activation Protocol:
• Level 1: Duty officer + 3 staff
• Level 2: Full team (12 personnel)
• Level 3: Regional support activated

Ships Arrest
Legal Procedures and Facilities:
1. Legal Framework:
– China Maritime Code Articles 22-28
– Supreme People’s Court Interpretation [2023] No.9
2. Arrest Authority:
– Wuhu Maritime Court (Special Maritime Division)
– Application processing time: 48 hours (urgent), 5 days (standard)
3. Arrest Procedure:
– Step 1: Plaintiff files application with evidence
– Step 2: Court issues arrest warrant
– Step 3: Port authority implements arrest
– Step 4: Vessel remains at designated anchorage (No.3 Arrest Anchorage)
4. Costs and Fees:
– Security deposit: 10,000 CNY/day (minimum 3 days)
– Court fees: 1% of claim value (capped at 50,000 CNY)
– Port supervision charge: 2,000 CNY/day
5. Recent Statistics (2023):
– Total arrests: 17 vessels
– Average detention period: 11.3 days
– Primary causes: Cargo claims (65%), crew wages (20%)

Fire Precautions
Detailed Fire Safety Measures:
1. Tanker-Specific Requirements:
– Hot work prohibition within 50m of tankers
– Inert gas systems verification (minimum 8% oxygen content)
– Bonding cables for all cargo operations
2. General Precautions:
– Fire patrol schedule:
• Every 2 hours for general cargo areas
• Continuous monitoring at dangerous goods terminals
– Smoking regulations:
• Designated zones marked in blue
• Complete ban within 30m of cargo
3. Firefighting Infrastructure:
– Hydrant system coverage: 100% of berths
– Fire station response time: <5 minutes
– Special equipment:
• 5,000kg dry chemical units at oil terminals
• Thermal imaging cameras for all response teams
4. New 2024 Requirements:
– Mandatory fire drills every 2 months
– Electronic fire system monitoring

Inspections from Other Parties
Comprehensive Inspection Regime:
1. Customs Inspections:
– Random cargo checks (5% of vessels)
– Focus areas:
• Container seals integrity
• Dangerous goods documentation
– K9 units deployed weekly
2. Health Inspections:
– Quarantine procedures:
• Temperature screening
• Food storage checks
– Sanitation requirements:
• Monthly pest control reports
• Medical waste handling
3. Environmental Inspections:
– Air quality monitoring:
• SOx and NOx limits (China GB 3847-2018)
• Real-time emissions tracking
– Water pollution controls:
• Zero discharge policy
• Weekly sampling at berths
4. Other Agencies:
– Immigration: Crew document verification
– Border Control: Anti-smuggling operations
– Labor Bureau: Crew working conditions

Maritime Security Zones
Designated Security Areas:
1. Terminal Security Zones:
– 100m restricted access perimeter
– Access control points at all entries
– Color-coded ID badges required
2. Critical Infrastructure Protection:
– Wuhu Yangtze River Bridge:
• 500m no-stopping zone
• Speed limit 6 knots
– Power plant water intake: 200m exclusion
3. Military Restricted Areas:
– Naval base: 1km no-entry zone
– Coordinates classified
4. Enforcement:
– Radar monitoring of zones
– Patrol boats on 24/7 duty
– Penalties for violations up to 200,000 CNY

Police
Law Enforcement Details:
– Primary Station: Wuhu Port Police Station
• Location: Terminal 1 Administration Building (31°20’20″N, 118°22’55″E)
• Jurisdiction: All port areas within 12nm
– Contacts:
• Emergency: 110
• Non-emergency: +86 553 584 3110
• Maritime Unit: VHF Ch.12
– Resources:
• 24/7 patrol teams
• 3 fast interceptor boats
• K9 unit (2 narcotics dogs)
– Cooperation: Joint operations with MSA and Customs

Flag
Flag State Regulations:
1. Chinese Flag Vessels:
– Must display national flag at stern
– Company flag at masthead
2. Foreign Flag Vessels:
– Proper national ensign required
– Courtesy flag (China) when in port
3. Special Signals:
– Quarantine flag (Yellow Q) when required
– Pilot flag (H) when embarking/disembarking
4. Penalties: Up to 5,000 CNY for improper display

Signals and Lights Display
Navigation Light Requirements:
1. COLREGs Compliance:
– Full lighting configuration required from sunset to sunrise
– Special configurations for:
• Vessels >200m (additional masthead light)
• Towing operations
2. Dangerous Cargo Signals:
– Day: Red B flag
– Night: All-round red light
3. Port-Specific Signals:
– Yellow flashing light: Working dredgers
– Blue light: Patrol vessels
4. Testing: Mandatory light checks before departure

Stowaways and Refuges
Prevention and Response Protocols:
1. Prevention Measures:
– 24/7 gangway watch (minimum 2 crew)
– Perimeter patrols (every 4 hours)
– Container inspection (5% random checks)
2. Discovery Procedures:
– Immediate port authority notification
– Isolation in designated ship areas
– Medical examination within 2 hours
3. Facilities:
– Port detention center (10-person capacity)
– Immigration processing within 48 hours
4. Statistics (2023): 8 stowaway incidents reported

Alcohol, Drugs and Prohibited Items
Substance Control Policies:
1. Alcohol Limits:
– 0.05% BAC for crew on duty
– No alcohol sales within 500m of terminals
2. Drug Policy:
– Zero tolerance for narcotics
– Random testing (10% of crew per vessel)
3. Prohibited Items:
– Firearms (except authorized security)
– Explosives without permit
– Certain chemicals (MEP List 2024)
4. Enforcement: Cooperation with narcotics squad

Reporting of Security Breaches
Security Incident Reporting:
1. Immediate Reporting:
– VHF Ch.16 (Marine Band)
– Emergency Hotline: +86 553 584 3100
2. Non-Urgent Reports:
– Email: security@wuhuport.gov.cn
– Online: China MSA e-reporting system
3. Procedure:
– Immediate verbal report
– Written report within 4 hours
– Investigation within 24 hours
4. Whistleblower Protection: Anonymous reporting available

Operation of drones
UAV Regulations (2024 Update):
1. General Prohibition:
– No drone flights within port limits without permit
2. Application Process:
– Submit request 72h in advance
– Provide:
• UAV specifications
• Pilot license
• Flight plan
3. Operational Restrictions:
– Daylight operations only (08:00-17:00)
– Maximum altitude: 50m
– 500m exclusion from vessels
4. Approved Uses:
– Port inspections
– Emergency response
– Survey operations
5. Penalties: Up to 50,000 CNY for violations

6. Cargo Operations

General Information
Wuhu Port cargo operations comply with:
– China Port Operations Standard GB/T 31088-2023 (Effective 1 Jan 2024)
– IMO International Maritime Dangerous Goods Code (IMDG 2024 Edition)
– Yangtze River Port Cargo Handling Regulations (Anhui Implementation Rules 2023)
– Wuhu Port Authority Operational Notice 2024-003
Throughput Statistics (2023):
– Total cargo: 182.7 million metric tons (+5.2% YoY)
– Container TEU: 1.25 million (+8.3% YoY)
– Liquid bulk: 28.4 million tons
– Dry bulk: 112.5 million tons
– Breakbulk: 41.8 million tons

Tanker Berths and Terminals
1. Berth Specifications:
– 8 dedicated tanker berths (T1-T8):
• T1-T4: Crude oil (12.5m depth)
• T5-T8: Petroleum products (10.5-11.5m depth)
– Maximum permitted drafts:
• Saltwater: 11.8m (T1-T4), 10.2m (T5-T8)
• Freshwater: 11.5m (T1-T4), 9.9m (T5-T8)
2. Loading/Discharge Infrastructure:
– Pipeline diameters: 12″ (300mm) standard, 16″ available at T1-T3
– Average operational rates:
• Crude oil: 2,000-2,500m³/hr
• Clean products: 1,500-1,800m³/hr
• Black products: 1,200-1,500m³/hr
3. Oil Specifications:
– Local crude characteristics:
• API gravity: 28-32
• Specific gravity: 0.87-0.89
• Sulfur content: 0.5-1.5%
– Temperature parameters:
• Operating range: -10°C to 60°C
• Heating coils available (steam 6kg/cm²)
4. Ancillary Services:
– Slop reception facilities:
• Total capacity: 1,000m³
• Maximum receiving rate: 200m³/hr
• Processing fee: 350 CNY/m³
– Shore steam supply:
• Available at T3-T6 berths
• Capacity: 8 ton/hr @ 7bar
• Cost: 120 CNY/ton
5. Safety Systems:
– Emergency equipment:
• 5 oil spill response vessels (500-2,000m³ capacity)
• 2,000m containment boom inventory
• 10 skimmers (50-100m³/hr capacity)
– Environmental controls:
• Vapor recovery systems at all berths
• Secondary containment for all pipelines
6. Operational Parameters:
– Prevailing wind conditions:
• NE 3-4 Beaufort (annual average)
• Summer SW winds 4-5 Beaufort
– Mooring requirements:
• Minimum 6 headlines for VLCCs
• Spring lines doubled for vessels >50,000 DWT
• Tug assistance mandatory >30,000 DWT
– Gangway specifications:
• ISO standard aluminum gangways
• Maximum span: 15m
• Night lighting: minimum 100 lux
7. New 2024 Requirements:
– Mandatory digital cargo tracking
– Enhanced VOC monitoring systems
– Revised slop disposal procedures

Container Berths and Terminals
1. Terminal Infrastructure:
– 12 container berths (C1-C12):
• C1-C6: 15m depth (14.2m max draft)
• C7-C12: 9-12m depth (8.5-11.5m max draft)
– Total quay length: 3,850m
– Back-up area: 1.2 million m²
2. Operational Capabilities:
– Average productivity:
• Ship-to-shore: 30-35 moves/hour
• Yard operations: 25-28 moves/hour
– Vessel size limitations:
• Maximum LOA: 230m (C1-C6), 180m (C7-C12)
• Maximum beam: 42m
3. Equipment Inventory:
– Quay cranes:
• 30 STS cranes (50-ton SWL)
• 5 Super-post-Panamax cranes (65-ton)
– Yard equipment:
• 45 RTGs (40-ton)
• 32 reach stackers
• 50 terminal trucks
4. Special Services:
– Shore power:
• 6.6kV/60Hz available at all berths
• Connection time: 1.5 hours typical
– Reefer facilities:
• 800 plugs available
• Temperature monitoring system
5. Safety Considerations:
– Wind restrictions:
• Operations cease at Beaufort 7 (14m/s)
• Crane shutdown at 12m/s
– Gangway specifications:
• Adjustable up to 15m span
• Anti-slip surfaces
6. 2024 Upgrades:
– New automated stacking cranes
– Digital twin terminal management system

Dry Cargo Berths and Bulk Facilities
1. General Cargo Facilities:
– 18 multi-purpose berths (G1-G18):
• Quay length: 150-300m per berth
• Depth alongside: 8-12m
• Maximum draft: 7.5-11.2m (freshwater)
– Back-up area: 850,000m² total
2. Bulk Handling Terminals:
– 6 dedicated berths (B1-B6):
• B1-B3: Minerals (iron ore, coal)
• B4-B6: Agricultural (grains, fertilizers)
– Operational parameters:
• Maximum draft: 10.5m (freshwater)
• Discharge rates:
– Grains: 5,000 tons/day
– Coal: 8,000 tons/day
– Iron ore: 10,000 tons/day
3. Main Commodities Handled:
– Iron ore (42% of dry bulk)
– Coal (28%)
– Grains (15%)
– Steel products (10%)
– Other (5%)
4. Equipment Specifications:
– Grab cranes: 10-40 ton capacity
– Conveyor systems: 1,500 tons/hr capacity
– Shiploaders: 2,000 tons/hr capacity
5. New Developments:
– Automated sampling systems
– Dust suppression upgrades

Passenger Berths and Terminals
1. Facility Details:
– 2 dedicated berths (P1-P2):
• Length: 120m each
• Depth alongside: 6m (freshwater)
• Maximum draft: 5.5m
– Terminal building: 8,000m²
2. Passenger Handling:
– Discharge rate: 200 passengers/hour
– Annual throughput: 450,000 passengers
3. Equipment:
– Mobile gangways (10m max height)
– Baggage handling system
4. Security:
– X-ray screening
– Facial recognition systems

Specialised Cargo Handling Facilities
1. Roll-on/Roll-off (Ro-Ro): Not available
2. Liquid Chemical Terminals:
– 3 dedicated berths (CH1-CH3):
• Stainless steel piping systems
• Segregated storage tanks (50,000m³ total)
– Handling capacity: 1,000m³/hr
3. LPG Facilities:
– 1 dedicated berth (LPG1):
• Depth: 9m
• Storage: 5,000m³ refrigerated
– Transfer rate: 800m³/hr
4. Heavy Lift Capability:
– B3 berth: 200-ton capacity
– Specialized rigging teams available
5. Project Cargo:
– Oversized cargo handling
– Special transport arrangements

Loading and Discharging Procedures
1. Pre-arrival Requirements:
– Submit cargo plan 24h prior (electronic submission)
– Hold inspections by port authorities (4h notice)
– Safety meeting before operations
2. Operational Protocols:
– Continuous supervision by:
• Port representative
• Ship’s officer
– Draft surveys:
• Before commencement
• After completion
• Every 6 hours during ops
3. Documentation:
– Cargo manifests in triplicate
– Time sheets signed hourly
– Damage reports immediately
4. Safety Measures:
– Hot work permits required
– Gas monitoring during tank operations

Loading and Discharging Rates
1. Container Operations:
– Standard: 30 moves/hour
– Peak: 35 moves/hour
2. Bulk Cargo:
– Iron ore: 10,000 tons/day
– Coal: 8,000 tons/day
– Grains: 5,000 tons/day
3. Liquid Bulk:
– Crude oil: 2,500m³/hr
– Clean products: 1,800m³/hr
4. Breakbulk:
– General cargo: 800 tons/day
– Steel products: 1,200 tons/day

Ship to Ship Transfer
1. Designated Area:
– Location: 31°25’N, 118°30’E
– Size: 1,000m diameter
– Depth: 15m
2. Approval Process:
– Application to MSA 72h prior
– Safety assessment required
3. Operational Requirements:
– Safety zone: 500m radius
– Minimum 2 tugs on standby
4. Equipment Provided:
– Fenders (2.0×2.5×1.5m)
– Hoses (12″-16″ diameter)
– Monitoring systems

Cargo Gear
1. Shore-based Equipment:
– Gantry cranes: 50 units (40-ton SWL)
– Mobile cranes: 12 units (25-100-ton)
– Floating crane: 1 unit (200-ton)
2. Ship’s Gear Usage:
– Permitted after inspection
– Certification required
3. Specialized Equipment:
– Coil handling frames
– Pipe lifting beams
– Heavy lift spreaders

Shore Cranes
1. Container Handling:
– Ship-to-shore cranes:
• 30 units (50-ton SWL)
• 5 units (65-ton SWL)
– Rubber-tired gantries:
• 45 units (40-ton SWL)
2. Heavy Lift Capability:
– Fixed cranes:
• 3 berths with 100-ton capacity
– Floating crane:
• 200-ton capacity
• 50m boom length
3. Maintenance:
– Monthly inspections
– Annual load testing

Floating Cranes
1. Available Units:
– “Wuhu Lift 1”: 200-ton capacity
– “Wuhu Lift 2”: 100-ton capacity
2. Operational Parameters:
– Minimum booking: 4 hours
– Response time: 2 hours
3. Cost Structure:
– 200-ton crane: 8,000 CNY/hour
– 100-ton crane: 5,000 CNY/hour
– Mob/demob: 10,000 CNY each way

Hoses
1. Liquid Cargo:
– Standard diameters: 12″ (300mm)
– Available sizes: 8″-16″
– Pressure rating: 10bar
2. Dry Bulk:
– Flexible connectors: 18″ diameter
– Loading spouts: adjustable
3. Maintenance:
– Pressure tested monthly
– Visual inspection daily

Specialised Cargo Operation
1. Dangerous Goods:
– Classified storage zones:
• Zone A: Explosives (not permitted)
• Zone B: Flammables
• Zone C: Corrosives
– Handling teams: Certified DG specialists
2. Prohibited Cargo:
– Radioactive materials
– Certain toxic chemicals
3. Special Procedures:
– Segregated storage
– Dedicated handling equipment

Lightering and Lighterage
1. Availability:
– 24/7 service
– Priority for perishables
2. Cost Structure:
– Standard rate: 150 CNY/ton
– Minimum charge: 500 tons
– Emergency premium: +30%
3. Equipment:
– 10 lighters (500-ton capacity)
– 5 tugboats

Barge
1. Fleet Availability:
– 30 units total
– Capacities: 300-800 tons
2. Operational Areas:
– Port limits only
– No open water operations

Cargo Lashing
1. Responsibility:
– Performed by stevedores (ISO 3874 standard)
2. Materials:
– Chains: Grade 80
– Web lashings: LC ≥10t
3. Inspection:
– Pre-load check
– Periodic during voyage

Cleaning Procedures
1. Bulk Residues:
– Vacuum systems available
– Charge: 500 CNY/hold
2. Wash Water:
– Treatment required
– Discharge fee: 200 CNY/m³

Opening/Closing Hatches
1. Standard Practice:
– Performed by ship’s crew
2. Assistance:
– Available at extra cost

Delay
1. Average Waiting Times:
– Peak season: 6-8 hours
– Off-peak: 2-4 hours
2. Compensation:
– Force majeure excluded
– Port liability limited

Stevedore Companies
1. Primary Contractor: Wuhu Port Stevedoring Co., Ltd.
– Official License: WH-ST-2024-001
– ETA Notice Requirement: 48 hours minimum
– Contact: +86 553 584 3200 (Operations Center)
2. Gang Specifications:
– Standard gang size: 15-25 workers
– Specialized teams for:
• Dangerous goods (10 certified teams)
• Heavy lift (5 teams)
3. Performance Metrics:
– Average productivity: 28 tons/gang hour
– Damage rate: <0.1% of cargo handled
4. Subcontractors:
– Anhui Cargo Handling Ltd. (for breakbulk)
– Yangtze Stevedores (for bulk operations)

Working Hours
1. Standard Schedule:
– Monday-Saturday: 08:00-17:00
– Lunch break: 12:00-13:00
– Sundays/NPH: No operations unless overtime
2. Overtime Provisions:
– Available upon request (4h minimum)
– Rates:
• Weekdays: 150% normal rate
• Sundays/NPH: 200% normal rate
– Notification: 12h advance notice required
3. Shift Patterns:
– Day shift: 08:00-17:00
– Night shift: 19:00-06:00 (premium +30%)

Warehouses and Yards
1. Covered Storage:
– Total area: 500,000m²
– Segregated zones:
• Temperature-controlled: 50,000m²
• Dangerous goods: 20,000m²
– Floor load capacity: 5-10 tons/m²
2. Open Storage:
– Total area: 2,000,000m²
– Bulk cargo areas: 1,200,000m²
– Container yards: 800,000m²
3. Specialized Facilities:
– Grain silos: 300,000 ton capacity
– Cold storage: 50,000m³ (-25°C to +15°C)
– Bonded warehouses: 100,000m²
4. Security Features:
– 24/7 CCTV monitoring
– Perimeter fencing with sensors
– Regular patrols

7. Port Services

General Information
Wuhu Port provides comprehensive services under:
– China Port Service Standard GB/T 38522-2020 (2023 Amendment)
– IMO Guidelines for Port Services (MSC.1/Circ.1582 Rev.2)
– Wuhu Port Authority Service Regulations 2024 (WHPA-2024-07)
– Yangtze River Maritime Safety Administration Circular No.15/2024
Service Availability: 24/7 with prior notice
Emergency Contact: +86 553 584 3100 (Port Operations Center)

Bunkering
1. Availability: Yes (24/7 with 12h notice)
2. Fuel Grades:
– RMG 380 (ISO 8217:2017)
– DMA (Marine Gas Oil, 0.1% sulfur)
– ULSFO (0.1% sulfur, max 60°C pour point)
3. Delivery Specifications:
– Barge delivery:
• Minimum: 50 metric tons
• Maximum: 5,000 metric tons
• Rate: 300-500 tons/hour
– Truck delivery:
• Minimum: 20 metric tons
• Maximum: 100 metric tons
4. Quality Assurance:
– Sampling per ISO 13739
– Mass flow metering systems
5. Pricing (June 2024):
– RMG 380: 4,850 CNY/ton
– DMA: 5,600 CNY/ton
– ULSFO: 5,800 CNY/ton
6. New 2024 Requirements:
– Mandatory digital bunker declarations
– Enhanced fuel quality documentation

Lubricants
1. Availability: 24h notice required
2. Product Range:
– Cylinder oils:
• SAE 40 (BN 40)
• SAE 50 (BN 70)
– System oils: SAE 30 (BN 12)
– Gear oils: SAE 90-140
– Greases: NLGI 2-3 (lithium complex)
3. Brands Available:
– Sinopec Great Wall
– Shell Marine
– Mobilgard
4. Delivery Methods:
– Drums (180kg)
– Bulk (min 1,000kg)
5. Certifications:
– All products meet OEM specifications
– ISO 9001:2015 certified suppliers

Fresh Water
1. Availability: Potable water available at all berths
2. Delivery Specifications:
– Barge delivery:
• Rate: 50 tons/hour
• Minimum: 100 tons
– Truck delivery:
• Rate: 20 tons/hour
• Minimum: 40 tons
3. Quality Standards:
– Meets WHO drinking water guidelines
– Monthly bacteriological testing
4. Pricing:
– Standard rate: 85 CNY/ton
– After-hours surcharge: +15%
– Emergency delivery: +30%
5. Testing: Chlorine residual 0.2-0.5ppm

Stores and Spare Parts
1. Delivery Protocols:
– Truck access:
• Allowed directly alongside
• Must provide 4h advance notice
– Barge operations:
• Permitted during cargo ops
• Requires safety briefing
2. Equipment Handling:
– Forklifts permitted on all jetties
– Max capacity: 5 tons
3. Customs Procedures:
– Declaration required via e-portal
– Duty exemption for ship’s use
– Prohibited items list available
4. Spare Parts Availability:
– Common engine parts (filters, gaskets)
– Deck equipment (wire ropes, shackles)
– Special orders: 48-72h lead time
5. Notice to Masters:
– Original invoices required
– Hazardous materials declaration mandatory

Dunning and Dunnage
1. Materials Available:
– Wooden dunnage (50×100×2000mm)
– Plastic mats (1200×800×50mm)
– Air bags (various sizes)
2. Operational Policy:
– Provided by stevedores
– Crew may supplement
3. Cost Structure:
– Wood: 120 CNY/piece
– Plastic: 350 CNY/mat
– Retrieval fee: 30% of value
4. Environmental Rules:
– Treated wood only
– No bamboo permitted

Ship Chandlers
1. Primary Providers:
– Wuhu Marine Supplies Co. Ltd.
• Bonded stores available
• 6h standard delivery
• Contact: +86 553 584 3250
– Yangtze Ship Services
• Specializes in provisions
• Halal/kosher available
2. Emergency Services:
– Medical supplies: 2h response
– Oxygen cylinders: immediate
3. Payment Terms:
– Cash (CNY/USD)
– Letter of credit
– Company accounts

Ship Husbandry
1. Service Providers:
– Wuhu Marine Services Co.
– Anhui Hull Cleaning Ltd.
2. Available Services:
– Hull cleaning (soft/hard)
– Tank cleaning (certified)
– Marine growth removal
– Painting (above waterline)
3. Certifications:
– ISO 14001 compliant
– IMO waste handling trained
4. Restrictions:
– No underwater operations
– Night work requires permit

Maintenance and Repairs
1. Deck Department Services:
– Steel fabrication:
• Max thickness: 10mm (mild steel)
• Welding standards: AWS D1.1/GB 12467
– Pipe repairs:
• Max diameter: 100mm (schedule 40)
• Materials: Carbon steel/stainless
– Electrical systems:
• 24V DC circuits only
• Cable repairs up to 50mm²
– Additional services:
• Winch brake adjustments
• Mooring equipment servicing

2. Engine Department Services:
– Pump overhauls:
• Centrifugal pumps (max 200m³/hr)
• Gear pumps (max 50m³/hr)
– Heat exchangers:
• Tube brushing/chemical cleaning
• Gasket replacements
– Valve maintenance:
• Grinding up to DN200
• Packing/gland replacements
– Other capabilities:
• Turbocharger nozzle cleaning
• Fuel injector testing

3. Service Limitations:
– Class-related work:
• No annual survey items
• No thickness measurements
– Restricted operations:
• No pressure vessel repairs
• No crankshaft machining
• No dynamic balancing
– Electrical restrictions:
• No HV system work (>1kV)
• No generator rewinding

4. Approved Service Providers:
– Wuhu Marine Engineering Co. Ltd.
• CCS/ABS certified workshop
• Specializes in pump/valve repairs
• Contact: +86 553 587 4120
– Yangtze Engine Services:
• OEM-trained technicians
• 24/7 emergency call-out
– Anhui Electrical Marine:
• ATEX-certified repairs
• Portable test equipment

5. Regulatory Compliance:
– All work complies with:
• IMO MSC.1/Circ.1259
• China GB/T 34015-2017
• Class society rules (as applicable)
– Mandatory documentation:
• Material certificates
• Welder qualifications
• Pressure test reports

6. Operational Notes:
– Minimum notice period: 24h
– Hot work permits required
– Waste disposal fees apply
– Night work surcharge: +30%

7. 2024 Updates:
– New digital work permit system
– Enhanced PPE requirements
– Revised waste handling procedures

Gangway and Deck Watchmen
1. Regulations:
– Mandatory for vessels >10,000 GT
– Minimum 2 watchmen per shift
2. Service Providers:
– Wuhu Port Security Co. (licensed)
3. Cost Structure (2024):
– Standard rate: 120 CNY/hour per guard
– Minimum charge: 8 hours
– Night shift premium: +20%
4. Equipment:
– Provided with VHF radios
– Night vision capability

Deratting
1. Certified Providers:
– Wuhu Quarantine Services (CNCA-approved)
2. Procedures:
– IHSPC standards compliance
– Electronic monitoring available
3. Pricing:
– Standard vessel (10,000 GT): 2,500 CNY
– Large vessel (>30,000 GT): 4,800 CNY
– Express service: +50%

Surveying
1. Available Services:
– Cargo inspection (SGS/BV)
– Draft surveys
– Bunker surveys
2. Classification Societies:
– CCS (China Classification Society)
– ABS, BV (local representatives)
3. Response Time:
– Routine: 12h notice
– Emergency: 4h (surcharge applies)

Fumigation
1. Certified Contractors:
– Anhui Pest Control (AQSIQ-licensed)
2. Methods:
– Phosphine tablets (standard)
– Heat treatment (additional cost)
3. Cost Examples:
– Grain holds (per hold): 3,800 CNY
– Full vessel: 18,000 CNY
4. Safety Measures:
– 48h quarantine period
– Gas monitoring equipment

Crewing and Repatriations
1. Crew Change Procedures:
– 72h prior notice required
– PCR test mandatory
2. Repatriation Services:
– Airport transfers arranged
– Visa assistance available
3. Designated Areas:
– Crew lounge at Terminal 2
– Isolation facilities if required

Dry Docks
1. Facility Specifications:
– No.1 Dock: 250×40×10m (100,000 DWT)
– No.2 Dock: 180×30×8m
– No.3 Dock: 150×25×7m
2. Service Capabilities:
– Hull repairs
– Propeller polishing
– UWILD inspections
3. Lead Time:
– Minimum 14 days booking

Launch Service
1. Operating Hours: 08:00-20:00 daily
2. Vessel Specifications:
– 2 launches (50 pax capacity each)
– Air-conditioned cabins
3. Fare Structure:
– Standard: 150 CNY/person
– Charter: 2,000 CNY/hour

Certificates Issuing
1. Available Documents:
– Port Clearance
– Ship Sanitation Certificate
– Bunker Delivery Notes
2. Processing Time:
– Routine: 2 working hours
– Express: 1 hour (+100% fee)

Shore Electricity
1. Technical Specifications:
– Voltage: 6.6kV/60Hz
– Connectors: IEC/ISO standard
2. Availability:
– Container berths: C1-C12
– Tanker berths: T3-T6
3. Cost: 3.2 CNY/kWh

Phones Services
1. Shipboard Connections:
– Installation fee: 500 CNY
– Monthly charge: 300 CNY
2. Mobile SIMs:
– China Mobile/Unicom available
– Data packages: 50-200 CNY

Banks
1. Port Branch:
– Bank of China Wuhu Port Sub-branch
– Services: Foreign exchange, remittance
– Hours: 09:00-16:00 (Mon-Fri)

Consuls and Visa
1. Nearest Consulates: Nanjing (1.5h by road)
2. Visa Services:
– Emergency visas arranged
– Processing time: 3 working days

Mail
1. Post Office: Port Administration Building
2. Services:
– Domestic/international mail
– EMS express available
3. Rates:
– Letter to Europe: 18 CNY
– Parcel to USA: 220 CNY/kg

Shore Leave
1. Regulations:
– Crew list submission required
– Valid passport/seaman’s book
2. Restricted Areas:
– Cargo operation zones
– Administrative buildings

Medical and Ambulance
1. Emergency Contacts:
– Port Clinic: +86 553 584 3135
– Ambulance: 120 (direct dial)
2. Facilities:
– Trauma first response
– COVID testing capability
3. Nearest Hospital:
– Wuhu No.1 People’s Hospital (3km)
– 24h emergency department

Seaman’s Clubs
1. Current Status: Not available
2. Alternatives:
– Crew recreation center (Terminal 3)
– Free shuttle to city center

Miscellaneous
1. Important Notices:
– Advance notification required for:
• Hazardous operations
• Special cargo handling
– Weather contingency plans in effect June-September
2. Environmental:
– Strict anti-pollution monitoring
– Zero discharge policy enforced
