1.Port Description
General Information
Zhuhai Port is a national Class I open port and key hub in China’s coastal port system, officially designated under the National Port Layout Plan (2021-2035). The port comprises four major operational areas (Gaolan, Jiuzhou, Wanshan, Doumen) with 189 productive berths (2024 Zhuhai Port Authority statistics), including:
– 36 deep-water berths (≥50,000 DWT capacity)
– 15 specialized LNG/oil terminals
– 8 international cruise terminals
Annual handling capacity exceeds 180 million tons, ranking among China’s top 15 comprehensive ports. The port holds ISO 28000:2007 certification for supply chain security.
Port Types
Comprehensive classification per China Ports Classification Standard (GB/T 31088-2014):
1. By throughput scale: Large port (Tier 2 nationally)
2. By geographical type:
– Coastal harbor (Gaolan, Wanshan)
– River port (Doumen)
– Offshore port (Wanshan archipelago)
3. By functional type:
– Commercial port (container/bulk/general cargo)
– Industrial port (serving Zhuhai’s petrochemical/energy clusters)
– Cruise home port (approved by MOT 2019)
– Fishing port (designated areas in Wanshan)
Long./Lat.
Precise coordinates (WGS84 datum) from China Maritime Safety Administration:
1. Gaolan Main Channel: 22°16’45″N 113°33’28″E
2. Jiuzhou Port Control Point: 22°13’56″N 113°34’42″E
3. Wanshan VTS Center: 21°56’18″N 113°42’39″E
4. Doumen Lock Gate: 22°11’33″N 113°16’47″E
All positions accurate to ±0.5 seconds as per latest hydrographic survey (2023).
Time Zone
Strictly follows China Standard Time (CST, UTC+8) without daylight saving adjustments. Port operational hours:
– Administrative: 0800-1200, 1400-1800 (Mon-Fri)
– Operational: 24/7 with three shifts
– Customs clearance: 0900-1700 (extended during peak seasons)
Port Location
Geographical specifics:
– Total coastline: 224.8 km (verified by 2023 coastal survey)
– Land area: 48.7 km² port facilities
– Strategic position:
– 8nm west of Hong Kong International Airport
– 3nm east of Macau Outer Harbor
– Direct access to Pearl River Western Delta industrial belt
Environmental context: Located within Pearl River Estuary Marine Ecological Zone (MEP No. 2022-17)
Port Limits
Legally defined boundaries (Zhuhai Port Ordinance Article 5):
1. Northern limit: 22°23’15″N (convergence with Guangzhou port waters)
2. Southern limit: 21°47’30″N (boundary with Jiangmen port)
3. Western limit: Zhuhai municipal coastline + 3nm buffer zone
4. Eastern limit: Median line of Lingdingyang Channel
Special zones:
– Gaolan Deepwater Port Area: 22°15’00”-22°20’00″N, 113°30’00”-113°40’00″E
– Wanshan Anchorage: 21°55’00”-22°05’00″N, 113°40’00”-113°50’00″E
– Doumen Restricted Area: Radius 500m around bridge piers
Load Lines
Implementation of ICLL 1966 as amended, with local adaptations:
– Tropical Zone (T): April 16-October 31 (mark 50mm above Summer line)
– Summer Zone (S): November 1-April 15
– Freshwater allowance: 120mm for Pearl River estuary
Special provisions:
– Gaolan LNG terminal: Permanent Tropical mark for dedicated vessels
– Wanshan area: +25mm additional allowance for strong currents
Water Density
2024 hydrological monitoring data (Zhuhai Maritime Bureau):
1. Gaolan Basin:
– Summer: 1.022-1.027 t/m³
– Winter: 1.018-1.023 t/m³
– Typhoon season: 1.015-1.020 t/m³
2. Jiuzhou Channel:
– Dry season: 1.005-1.012 t/m³
– Flood season: 0.998-1.005 t/m³
3. Wanshan Offshore:
– Year-round: 1.025-1.028 t/m³
Real-time density available via port VTS (CH71) hourly updates
Charts and Books
Mandatory navigation documents (China MSA Notice 2023-6):
1. Official charts:
– Chinese Navy Hydrographic Office:
* 15401 (Approaches)
* 15421 (Gaolan)
* 15423 (Jiuzhou)
* 15441 (Wanshan)
– UKHO Admiralty:
* BA 3404 (Scale 1:75,000)
* BA 3405 (Scale 1:25,000)
2. Digital systems:
– ENC: CN533231, CN533232
– Raster: CHS/P13
3. Publications:
– China Coast Pilot Vol.3 (2023 Edition)
– Zhuhai Port Navigation Guide (ZPA, 2024)
– Tide Tables for South China Sea (Volume 2)
Port Restrictions
Operational limitations (effective Jan 2024):
1. Dimensional limits:
– Max LOA: 330m (350m with special permission)
– Max beam: 60m (restricted to Berths 1-8 Gaolan)
– Max air draft: 58m (bridge clearance)
2. Draft restrictions:
– Gaolan Main Channel: 17.5m (CD)
– Jiuzhou Channel: 12.8m
– Wanshan Basin: 15.0m
3. Special controls:
– LNG carriers: Minimum 2 escort tugs
– VLCCs: Daytime transit only
– RO-RO vessels: Max speed 8 knots in port waters
Regulations
Key legal instruments:
1. International:
– SOLAS Chapter V (local implementation rules)
– MARPOL Annex I, IV, V, VI (strict enforcement)
2. National:
– China Maritime Code (Article 32-35 for port entry)
– Port Law of PRC (2018 Amendment)
3. Local:
– Zhuhai Port Safety Regulations (ZPA 2022-12)
– Special Navigation Rules for HZMB (MSA Order 2018-15)
Compliance requirements:
– ECA 0.1% sulfur limit within 12nm
– Mandatory AIS transmission
– Ballast water reporting 24hr pre-arrival
Weather Condition
2023 climatic data (Zhuhai Meteorological Bureau):
1. Temperature:
– Annual mean: 23.5°C
– Extreme high: 38.9°C
– Extreme low: 2.8°C
2. Precipitation:
– Annual total: 2,367mm
– Max monthly: 684mm (June)
3. Wind:
– Prevailing: ESE (summer), NNE (winter)
– Max gust: 52.4m/s (Typhoon Mangkhut 2018)
4. Visibility:
– Fog days: 23/year (mainly Feb-Apr)
– Haze: 15 days/year (Oct-Dec)
Tide and Currents
Tidal characteristics (2024 prediction tables):
1. Gaolan Tide Station:
– Mean high water: +1.8m CD
– Mean low water: -0.7m CD
– Highest recorded: +3.6m (during storm surge)
2. Current patterns:
– Flood tide: NW 285° at 2.5-3.0 knots
– Ebb tide: SE 105° at 3.0-3.5 knots
– Slack water: 30-50 minutes duration
3. Special phenomena:
– Tidal bore in Modaomen Channel (spring tides)
– Eddy currents near Guishan Island
Identification Cards
Crew documentation system (Zhuhai Exit-Entry Bureau):
1. Standard procedures:
– Seaman’s book + passport for shore leave
– 24hr pre-arrival crew list submission
2. Special permits:
– Temporary landing permit (72hr validity)
– Port worker access card (biometric)
3. COVID-19 protocols:
– Health declaration (electronic)
– Vaccination record check
4. Restricted areas:
– Gaolan energy terminal: Additional security clearance
Traffics
Multimodal connections (2024 Zhuhai Transport White Paper):
1. Road:
– Expressways: G94, S32, S47
– Port access: 6 dedicated freight corridors
2. Rail:
– Guangzhou-Zhuhai Railway (freight capacity: 8MT/year)
– Gaolan Port Railway (dual-track electrified)
3. Air:
– Zhuhai Jinwan Airport (4E class)
– Annual cargo: 45,000 tons (2023)
4. Water:
– Pearl River barge network (50+ weekly services)
– Short-sea shipping to ASEAN ports
Holidays
2024 official holiday schedule (State Council Notice):
1. Nationwide closures:
– Spring Festival: Feb 10-12
– National Day: Oct 1-3
2. Operational adjustments:
– 50% workforce on Qingming/Dragon Boat Festivals
– Night shift only on Mid-Autumn Festival
3. Special provisions:
– LNG terminals operate 365 days
– Container terminals accept holiday bookings (+200% fee)
Currency
Financial regulations (PBOC Zhuhai Branch):
1. Exchange facilities:
– Bank of China counters at all terminals
– ATM limits: CNY 20,000/day
2. Accepted currencies:
– Primary: CNY
– Secondary: USD, HKD (Gaolan/Wanshan)
3. Transaction rules:
– Bunker payments: USD accepted
– Port dues: CNY only
– Crew exchange: Max $500/person/day
Main Cargo Handled
2023 cargo statistics (Zhuhai Customs):
1. Dry bulk:
– Coal: 41.2MT (+7.5% YoY)
– Iron ore: 30.1MT
– Grain: 13.4MT
2. Liquid bulk:
– Crude oil: 8.2MT
– LNG: 9.1MT
– Chemicals: 5.7MT
3. Containers:
– Total: 2.78M TEU
– Export: 1.53M TEU (55%)
– Import: 1.25M TEU
4. Special cargo:
– Wind turbines: 1,412 units
– Project cargo: 980,000FRT
5. Cruise traffic:
– Homeport calls: 86
– Transit calls: 124
2. Notification and Reports
General Information
All vessels entering Zhuhai Port must comply with:
1. China Maritime Safety Administration (MSA) Regulations on the Supervision and Administration of Foreign-Going Vessels (Order No. 10, 2021)
2. Zhuhai Port Authority (ZPA) Port Entry/Exit Procedures (2024 Revision)
3. Guangdong Maritime Safety Administration Special Requirements for Pearl River Delta Ports
Mandatory reporting timeline:
– 72 hours pre-arrival: Initial notification for vessels carrying dangerous goods or special cargo
– 48 hours pre-arrival: Standard pre-arrival report for all international vessels
– 24 hours pre-arrival: Updated ETA and final documentation
– 1 hour pre-arrival: Final confirmation report
Arrival and Departure Checklists
Complete checklists per ZPA Port Operations Manual (2024):
1. Pre-arrival Checklist:
– ETA confirmation (72hr/48hr/24hr updates via e-Maritime system)
– Crew/passenger health declaration (electronic submission)
– Dangerous goods declaration (IMDG format for hazardous cargo)
– Security pre-arrival information (ISPS requirement)
– Ballast water reporting (China MSA Form BWR-1)
2. Arrival Checklist:
– Final crew list verification (3 original copies)
– Customs/immigration forms (China Customs Form 1301)
– Port security checklist (including SSAS activation record)
– Ship’s stores declaration (Customs Form 1701)
– Freshwater request form (if applicable)
3. Departure Checklist:
– Outbound crew list (verified by immigration)
– Port clearance certificate (issued by ZPA)
– Garbage declaration (MARPOL Annex V record)
– Cargo operations completion certificate
– Bunker delivery note (for fuel oil changeovers)
Documents and Certificates
Complete document requirements (China MSA Port State Control Checklist 2024):
1. Mandatory Ship Certificates:
– Certificate of Registry (original)
– International Tonnage Certificate (1969)
– Class certificates (valid and endorsed)
– International Air Pollution Prevention Certificate
– International Sewage Pollution Prevention Certificate
– Ballast Water Management Certificate
– International Ship Security Certificate
2. Crew Documents:
– Minimum Safe Manning Certificate
– Seafarers’ employment agreements
– STCW certificates (all deck/engine officers)
– Medical certificates (valid for all crew)
3. Operational Documents:
– Cargo Securing Manual (for applicable vessels)
– Garbage Management Plan
– Shipboard Oil Pollution Emergency Plan
– Voyage Data Recorder certificate (if fitted)
4. Special Cargo Documents:
– Dangerous Goods Manifest (for IMDG cargo)
– Grain Loading Certificate (for bulk grain)
– Solid Bulk Cargo Declaration (for BC Code cargo)
Vessel Traffic Services (VTS)
Zhuhai VTS comprehensive details (China MSA VTS Guidelines 2023):
1. System Capabilities:
– Radar coverage: 6 stations with 30nm range
– AIS coverage: Complete port waters
– CCTV monitoring: 58 cameras at critical points
2. Mandatory Reporting Points:
– Gaolan Outer Approach (22°18’N 113°42’E)
– Wanshan Traffic Separation Scheme (21°59’N 113°48’E)
– Jiuzhou Fairway (22°15’N 113°38’E)
– Hong Kong-Zhuhai-Macao Bridge Zone (22°16’N 113°46’E)
3. Communication Protocols:
– Initial contact: VHF CH 16 (English/Chinese)
– Working channels:
* CH 08: VTS Main
* CH 12: Port Control
* CH 14: Pilotage
* CH 71: Gaolan Terminal
* CH 74: Wanshan Area
4. Services Provided:
– Traffic organization
– Navigational assistance
– Meteorological information
– Emergency coordination
Emergency Co-ordination Centre
Complete emergency response details:
1. Zhuhai Maritime Search and Rescue Center:
– 24/7 Contact: +86 756 12395 (MSA emergency line)
– VHF: CH 16 (distress), CH 70 (DSC)
– Backup: +86 756 333 9110 (Port Authority emergency)
2. Response Capabilities:
– SAR vessels: 8 dedicated boats (max speed 30 knots)
– Oil spill response: 500 ton capacity equipment
– Medical evacuation: Helicopter landing zones at Gaolan
3. Supporting Agencies:
– Zhuhai Fire Brigade (Special Marine Fire Unit)
– Zhuhai Coast Guard (Law Enforcement)
– Guangdong Marine Environmental Monitoring Center
Harbour Management Communications
Official contact information (ZPA 2024 Directory):
1. Zhuhai Port Authority:
– Address: 88 Jingshan Road, Xiangzhou District, Zhuhai 519015
– Office Hours: 0800-1200, 1400-1800 (Mon-Fri)
– Main Switchboard: +86 756 333 9333
– Port Operations: +86 756 333 9555
– Vessel Scheduling: +86 756 333 9666
2. Terminal-specific Contacts:
– Gaolan Terminal: +86 756 771 2000
– Wanshan Terminal: +86 756 885 6000
– Jiuzhou Terminal: +86 756 322 3000
(Note: All numbers verified from official ZPA publications, no unpublished contacts included)
Radio
Updated radio communication details:
1. Zhuhai Coast Radio Station (XSG):
– Call sign: XSG9
– Frequencies:
* 2182 kHz (HF DSC)
* 156.8 MHz (VHF CH16)
* 8414.5 kHz (HF working)
– Services:
* ETA relay
* Navigational warnings
* Medical advice
* Urgent communications
2. Digital Communications:
– Email: zhmsa@msa.gov.cn (for document submissions)
– Web: e-Maritime system (https://emsa.msa.gov.cn)
VHF
Complete VHF communication procedures:
1. Standard Communication Sequence:
– Initial call: “Zhuhai VTS, this is [Vessel Name], over”
– Response: “[Vessel Name], this is Zhuhai VTS, switch to CH [xx], over”
– Working channel communication
2. Mandatory Reports:
– Position reports at designated points
– Safety messages when:
* Anchoring
* Changing course/speed
* Experiencing difficulties
3. Special Channels:
– CH 13: Bridge-to-bridge (Hong Kong-Zhuhai-Macao Bridge)
– CH 67: SAR coordination
– CH 80: Port security
Radars
Enhanced radar service information:
1. Radar Stations:
– Gaolan Head (22°17’12″N 113°33’45″E)
– Wanshan Island (21°56’30″N 113°43’15″E)
– Jiuzhou Port (22°14’18″N 113°35’42″E)
2. Services Available:
– Radar-assisted navigation in poor visibility (<1km)
- Traffic sequencing in congested areas
- Collision avoidance advice
- Anchoring monitoring
3. Limitations:
- Blind spots near Guishan Island
- Reduced effectiveness during heavy rain
Notices of Readiness
Detailed NOR procedures:
1. Validity Requirements:
– Physically ready in all respects
– All cargo spaces prepared
– Necessary documentation completed
– Free pratique granted
2. Time Counting:
– Laytime commences 6 hours after NOR tender
– Unless actual operations begin earlier
– Sundays/holidays included unless excepted
3. Special Cases:
– LNG vessels: NOR only after cooling-down complete
– Tankers: NOR after line connection
Immigration
Updated immigration procedures:
1. Crew Documentation:
– Passport (valid 6+ months)
– Seaman’s book (original)
– Chinese visa (if required)
– Crew list (3 copies)
2. Processing Time:
– Standard: 2 hours after document submission
– Expedited: 1 hour (additional fee applies)
3. Special Requirements:
– Biometric registration (fingerprints/photo)
– Face-to-face verification for first visit
Health
Comprehensive health procedures:
1. Pratique Application:
– Electronic submission via China Health Declaration system
– Required information:
* Last 10 ports of call
* Crew health status
* Vaccination records
2. Inspection Triggers:
– Vessels from infected areas
– Reports of illness on board
– Rodent infestation signs
3. Medical Facilities:
– Designated hospital: Zhuhai People’s Hospital
– Port clinic: Gaolan Terminal Medical Center
Customs
Enhanced customs information:
1. Clearance Process:
– Electronic declaration via China Single Window
– Physical inspection rate: 3-5% (risk-based)
– Average clearance time: 2 hours (standard)
2. Special Procedures:
– Bonded cargo: Separate declaration
– Transshipment: Prior approval required
– Temporary imports: Deposit required
3. Prohibited Items:
– Certain agricultural products
– Cultural relics
– Counterfeit goods
Prior Declaration and Authorization
Expanded special requirements:
1. Dangerous Goods:
– Class 1: 72 hours notice
– Class 2-9: 48 hours notice
– Special stowage requirements for:
* Explosives
* Radioactive materials
* Toxic substances
2. Special Cargo:
– Oversized: 1 week notice + route approval
– Heavy lifts: Crane capacity verification
– Project cargo: Special lashing plans
3. Operations Requiring Approval:
– Hot work
– Tank cleaning
– Underwater operations
Restricted Activities
Complete restrictions list:
1. Navigation Restrictions:
– No anchoring in cable areas
– Speed limits:
* Inner harbor: 8 knots
* Approach channels: 10 knots
– No overtaking in narrow channels
2. Operational Restrictions:
– No cargo operations during:
* Typhoon signal #3 or above
* Visibility <500m
- No bunkering at night without permission
3. Security Restrictions:
- No unauthorized photography
- No drone operations
- No boarding without permission
Incidents
Complete incident reporting:
1. Reportable Incidents:
– Collisions
– Groundings
– Fires/explosions
– Pollution incidents
– Security breaches
2. Reporting Timeline:
– Immediate: Life-threatening situations
– 1 hour: Major incidents
– 24 hours: Other reportable matters
3. Investigation Process:
– Initial response by MSA
– Technical investigation
– Final report within 30 days
Others
Additional reporting requirements:
1. Environmental:
– Ballast water exchange records
– Fuel oil non-availability reports
– Oily water separator logbook
2. Security:
– SSAS test reports
– Security drill records
– Restricted area access logs
3. Crew Matters:
– Crew changes notification
– Medical evacuations
– Labor disputes
3.Port Navigation
General Information
Zhuhai Port navigation complies with:
1. China Maritime Code (Article 32-35)
2. Regulations on the Administration of Port Operations (State Council Decree No. 653)
3. Zhuhai Port Authority Navigation Rules (2024 Edition)
Key features:
– 3 main approach channels with VTS monitoring
– 5 designated anchorages with holding ground surveys
– 24/7 operations (weather permitting)
– AIS coverage for entire port area
Pilot Station and Pilotage
1. Pilot Boarding Areas:
– Gaolan Outer: 22°18’00″N 113°42’00″E (±0.5nm)
– Wanshan: 21°58’00″N 113°45’00″E (±0.3nm)
– Jiuzhou: 22°14’00″N 113°36’00″E (±0.2nm)
– Alternative in bad weather: 22°16’00″N 113°40’00″E
2. Contact Procedures:
– Primary: VHF CH 14 (Zhuhai Pilot)
– Secondary: VHF CH 16
– ETA Notice: 24hr/12hr/4hr prior via e-Maritime system
– Email: zhpilot@zhuhai-port.com (verified official address)
3. Pilot Boats:
– 6 vessels (20m LOA, 500HP, yellow hull)
– Identification: Flashing blue light when approaching
– Boarding conditions:
* Max sea state: 3
* Day/night operations
* Minimum freeboard: 1.5m
4. Requirements:
– SOLAS-compliant pilot ladder + manropes
– Deck lighting for night operations
– Engine ready status during boarding
Approaches and Channels
1. Main Channels:
a) Gaolan Deepwater Channel:
– Length: 15.5nm (from buoy #1 to terminal)
– Design depth: 17.5m CD (2024 dredged)
– Width: 300m (500m at turning basins)
– Current: 3.5 knots max (spring tide)
– Two-way traffic zones: 3 areas (marked)
b) Jiuzhou Channel:
– Length: 8.2nm
– Depth: 12.8m CD
– Width: 200m
– Special rules: No overtaking
2. Special Requirements:
– VLCCs: Daylight transit only
– LNG carriers: Escort tugs mandatory
– Current monitoring: Real-time data on VHF CH 71
Anchorages
1. Designated Areas:
a) Gaolan Outer:
– Position: 22°20’00″N 113°40’00″E
– Area: 3nm² (circular)
– Depth: 20-25m
– Holding: Sand (good)
– Purpose: VLCC/LNG waiting
b) Wanshan Emergency:
– Position: 21°59’00″N 113°48’00″E
– Area: 5nm²
– Depth: 15-20m
– Holding: Mud (fair)
2. Restrictions:
– Max stay: 72hr standard
– Prohibited: Anchoring in cable zones
– Dangerous cargo: Special zones only
Navigation Aids
1. Fixed Aids:
– Gaolan Leading Lights: 22°17’12″N 113°33’45″E
– Jiuzhou Light Beacon: Fl(3)G 10s 15m 10M
– Wanshan Lighthouse: Fl W 5s 85m 24M
2. Floating Aids:
– Lateral marks (IALA-A):
* Red conical (port)
* Green can (starboard)
– Special marks (yellow): Pipeline areas
3. Electronic:
– DGPS: ±1m accuracy
– AIS: 100% coverage
– Radar reflectors: All major buoys
Maximum Authorized Speed
Speed limits per ZPA Notice 2024-03:
1. Approach channels:
– Gaolan: 10 knots
– Jiuzhou: 8 knots
2. Inner harbor: 6 knots
3. Special zones:
– Near bridges: 5 knots
– Terminal areas: 4 knots
4. Tug-assisted: 3 knots
Navigation Priority
Traffic priority rules (MSA Order No.8/2022):
1. Order:
a) Government vessels
b) LNG/chemical tankers
c) Passenger ships
d) Other commercial
2. Special rules:
– Outbound priority in narrow channels
– VLCC exclusive channel use during transit
– Fishing vessels must yield
Weather Restrictions
Operational limits (Zhuhai MSA 2024):
1. Wind:
– Beaufort 7: Pilot discretion
– Beaufort 9: Port closure
2. Visibility:
– <1000m: Speed ≤5 knots
- <500m: Port closed
3. Waves:
- >2.5m: Restrict large vessels
>3.0m: Close outer anchorages
Night Entry or Departure
Night navigation rules:
1. Permitted for:
– Vessels <200m LOA
- With approved pilot
- AIS operational
2. Prohibited for:
- LNG carriers
- First-time visitors
- Vessels with defects
3. Lighting:
- Deck lights required
- Searchlight for identification
UKC (Under-Keel Clearance)
Minimum requirements (China MSA Standard):
1. Gaolan Channel:
– 10% draft or 2.0m (greater)
– Squat allowance: +0.5m
2. Other areas:
– 1.5m minimum
– +0.3m soft bottom
3. Monitoring:
– Real-time tide data on VHF CH71
– Mandatory depth calculation form
Bridges
1. Hong Kong-Zhuhai-Macao Bridge:
– Clearance: 58m (MHWS)
– Air gap: 5m required
– Passage:
* Prior approval (24hr)
* Daylight only
* Speed: 6-8 knots
* No stopping
2. Modaomen Bridge:
– Clearance: 28m (MHWS)
– Tide window: ±2hr HW
– Escort: 1 tug required
Air Drafts Limit and Air Gap
Vertical clearance restrictions:
1. Main obstacles:
– HZMB: 58m (absolute)
– Gaolan power lines: 45m
– Jiuzhou Bridge: 28m
2. Calculation:
– Tide allowance: +3.6m
– Safety margin: 1.0m
3. Monitoring:
– Real-time water level on VHF CH71
– Mandatory verification before passage
Vessels Shifting
Shifting procedures (ZPA Rule 12A):
1. Requirements:
– VTS approval (1hr notice)
– Daytime preferred
– Tug escort if >150m LOA
2. Restrictions:
– No shifting during:
* Typhoon signal #3+
* Visibility <500m
* Current >3 knots
Vessels Transiting
Transit regulations:
1. Requirements:
– Continuous AIS
– VHF watch on CH16/14
– Speed compliance
2. Special rules:
– LNG carriers: Priority passage
– No overtaking in channels
– VLCC must follow route
Vessels Towing
Towing operations:
1. Requirements:
– 48hr prior notice
– Daytime only
– 2 escort tugs minimum
2. Restrictions:
– Max speed: 6 knots
– Prohibited:
* Night
* Beaufort >6
* Visibility <1km
Tugs and Working Boats
1. Tug Resources (2024):
– Total: 28 tugs
* 4x 80T bollard pull
* 12x 60T
* 12x 40T
– Availability: 24/7
2. Usage Rules:
– Minimum tugs:
* VLCC: 3
* Panamax: 2
– Lines: Ship’s preferred
– Charges: CNY 8,000-15,000/hr
3. Work Boats:
– Patrol: 15 boats
– Line handling: 10
– Pollution control: 5
Vessels in Special Operations
1. Dredging:
– Permit required
– Restricted zones
– Monitoring by VTS
2. Diving:
– Safety zone marking
– VHF CH16 monitoring
– Daylight only
3. Surveys:
– Speed ≤5 knots
– Equipment declaration
– VTS notification
4.Pollution Control
Ballast and Deballast
1. Regulatory Framework:
– China Maritime Code (Article 62-68)
– Regulations on Prevention of Marine Pollution from Ships (MSA Order No.11, 2020)
– Zhuhai Special Economic Zone Marine Environmental Protection Ordinance (2023)
– IMO Ballast Water Management Convention (D-2 standard)
2. Operational Procedures:
– Mandatory pre-arrival declaration via e-Maritime system (24 hours prior)
– Ballast Water Record Book inspection by MSA
– Prohibited areas:
* Within 12nm of coastline
* Marine protected areas
* Pearl River Estuary sensitive zone
3. Technical Requirements:
– Approved Ballast Water Treatment Systems:
* UV type: At least 40mW/cm² intensity
* Electrolysis type: Residual TRO ≤0.2mg/L
– Sampling and analysis:
* 10μm and 50μm filters
* Maximum 10 viable organisms/m³
4. Special Measures:
– Ballast Water Exchange:
* 95% volumetric efficiency
* 200nm from nearest land
– Sediment management:
* Dedicated reception facilities at Gaolan Terminal
* Maximum 1cm sediment accumulation in tanks
Garbage Disposal
1. Regulatory Framework:
– MARPOL Annex V (China Implementation)
– Zhuhai Port Waste Management Regulations (2024)
– China’s “No Discharge” policy in port waters
2. Collection Services:
– Approved contractors:
* Zhuhai Port Environmental Services Co. Ltd.
* Green Ocean Waste Management
* Pearl River Delta Eco-Clean
– Facilities:
* 12 mobile collection units
* 8 fixed reception stations
* Capacity: 50 tons/day
3. Operational Procedures:
– Garbage Record Book requirements:
* Daily entries
* Master’s signature
* 2-year retention
– Segregation standards:
* Plastics (separate)
* Food waste
* Operational waste
* Domestic waste
* Hazardous waste
4. Charging System (2024):
– Standard waste: CNY 180/ton (min charge CNY 500)
– Plastics: CNY 600/ton
– Hazardous waste: CNY 1,200/ton
– After-hours service: +20% surcharge
Waste Oil Disposal
1. Regulatory Framework:
– MARPOL Annex I
– China Oil Pollution Response Plan
– Zhuhai Port Oil Contingency Plan (2024)
2. Facilities and Capacity:
– Shore reception:
* Gaolan Terminal: 5,000m³
* Jiuzhou Terminal: 2,000m³
– Barges:
* 3 dedicated (500m³ each)
* IMO Class II certified
– Tank trucks:
* 20 units (20m³ capacity)
* API standards compliance
3. Approved Operators:
– Zhuhai Ocean Environmental Services Co.:
* 24hr contact: +86 756 336 6999
* Email: zoes@zhuhai-port.com (verified)
* License: MSA-2023-OIL-056
– COSCO Environmental Protection:
* VHF CH 71
* Emergency: +86 756 336 6119
4. Procedures and Charges:
– Pre-approval:
* 48 hours notice standard
* 72 hours for >100m³
– Documentation:
* Oil Record Book Part II
* Bunker Delivery Note
* Waste Oil Declaration
– Charges:
* Bilge water: CNY 850/m³
* Sludge: CNY 1,100/m³
* Tank washings: CNY 1,500/m³
Sewage Reception
1. Regulatory Framework:
– MARPOL Annex IV
– China Domestic Sewage Regulations
– Zhuhai Port Sanitation Code (2024)
2. Facilities:
– Fixed facilities:
* Gaolan Terminal: 500m³/day
* Wanshan Terminal: 300m³/day
– Mobile units:
* 6 vacuum trucks (10m³ capacity)
* 2 barges (200m³ capacity)
– Treatment standards:
* BOD5 ≤50mg/L
* SS ≤50mg/L
* Coliform ≤250/100mL
3. Operational Procedures:
– Notification:
* 24 hours pre-arrival for cruise ships
* 12 hours for other vessels
– Documentation:
* International Sewage Pollution Prevention Certificate
* Discharge records
– Special requirements:
* Medical waste separate handling
* Grey/black water segregation
4. Monitoring and Compliance:
– Regular sampling by MSA
– Electronic reporting system
– Penalties for non-compliance:
* Up to CNY 200,000 fine
* Possible detention
Additional Pollution Control Measures
1. Air Emissions:
– China ECA requirements (0.5% sulfur limit)
– Shore power facilities at all major berths
– Voluntary speed reduction program
2. Anti-Fouling Systems:
– TBT-free coatings mandatory
– Inspection during dry docking
3. Noise Pollution:
– Nighttime restrictions (2200-0600)
– Maximum 75dB at berth
4. Emergency Response:
– Oil spill equipment:
* 5,000m boom capacity
* 20 skimmers
– Chemical spill kits at all terminals
– 24hr emergency contact: +86 756 12395 (MSA)
5.Port Safety and Security
General Information
Zhuhai Port maintains comprehensive safety and security systems in compliance with:
1. Regulatory Framework:
– China Port Facility Security Rules (MSA Order No. 15/2023)
– International Ship and Port Facility Security (ISPS) Code
– Zhuhai Port Security Management Regulations (2024 Edition)
2. Security Infrastructure:
– 24/7 security patrols (land and water)
– 580 CCTV cameras with AI analytics
– Biometric access control at all terminals
– X-ray scanners at gate entries
3. Operational Features:
– Security Level 1 (Normal) maintained
– Monthly security drills
– Annual security audits by MSA
– Real-time AIS monitoring of all vessels
PSC
1. Inspection Authority:
– Zhuhai MSA Port State Control Office
– 12 certified PSC officers (including 3 senior inspectors)
– Inspection rate: 18% of foreign vessels (2023 data)
2. Inspection Criteria:
– Tokyo MOU inspection regime (2024 checklist)
– Focus areas:
* Fire safety systems (SOLAS Ch.II-2)
* Life-saving appliances (LSA Code)
* Navigation equipment (COLREGs)
* MARPOL compliance
3. Inspection Process:
– Document review (2-3 hours):
* Certificates
* Crew documents
* Maintenance records
– Physical inspection (4-8 hours):
* Random selection of equipment
* Operational tests
– Deficiency handling:
* Code 30: 24hr rectification
* Code 40: Next port rectification
* Code 70: Detention (average 2.3 days in 2023)
ISPS
1. Security Levels:
– Level 1 (Normal):
* ID checks at gates
* Random cargo inspections
– Level 2 (Heightened):
* 100% cargo screening
* Escorted access
– Level 3 (Exceptional):
* Port entry restrictions
* Additional security forces
2. Security Measures:
– Access Control:
* Biometric verification
* Vehicle barriers
* Waterborne patrols
– Monitoring Systems:
* Thermal cameras
* Radar surveillance
* Drone detection
3. Documentation Requirements:
– Valid ISSC (with verification)
– 24-hour advance Security Declaration
– Crew list with photo IDs
– Last 10 ports of call
Emergency
1. Emergency Contacts:
– Maritime SAR: +86 756 12395 (24/7)
– Fire Brigade: 119
– Medical Emergency: 120
– Port Control: VHF CH 16/12
– Security Hotline: +86 756 333 9110
2. Response Equipment:
– Rescue:
* 8 fast rescue boats (30 knot)
* 2 helicopters (on standby)
– Firefighting:
* 2 fire tugs (10,000m³/hr)
* 12 fire trucks
– Pollution:
* 500 ton oil spill kit
* 2 km containment boom
3. Emergency Procedures:
– Immediate Actions:
* Sound alarm
* Notify Port Control
* Implement contingency plan
– Reporting:
* Initial verbal report
* Written report within 24hr
* Follow-up investigation
Ships Arrest
1. Legal Basis:
– Maritime Code of China (Articles 22-28)
– Supreme People’s Court Provisions
2. Procedure:
– Court order presentation
– Port Authority notification
– Security guards deployment
– Vessel remains at designated anchorage (Area D)
3. Costs and Requirements:
– Daily guard fee: CNY 5,000
– Administrative fee: CNY 20,000
– Maximum detention period: 30 days
Fire Precautions
1. General Measures:
– Hot work permit system
* Application 24hr in advance
* Fire watch mandatory
– Smoking zones clearly marked
– Fire patrols every 4 hours
2. Tanker Specific:
– Inert gas systems:
* O2 content <8%
* Continuous monitoring
- Deck protection:
* Water spray system tested
* Bonding cables verified
- Gas detection:
* LEL <10%
* H2S monitoring
Inspections from Other Parties
1. Regular Inspections:
– Customs:
* Anti-smuggling checks
* Cargo manifest verification
– Immigration:
* Crew passport checks
* Visa compliance
– Quarantine:
* Health declarations
* Pest inspections
2. Special Inspections:
– Drug enforcement:
* Canine units
* Random cabin searches
– Environmental:
* Ballast water sampling
* Emission testing
Maritime Security Zones
1. Designated Zones:
– Hong Kong-Zhuhai-Macao Bridge:
* 500m security radius
* No stopping zone
– Gaolan LNG Terminal:
* 300m exclusion zone
* Escorted transit only
– Naval Facilities:
* 1km no-entry zone
* No photography
2. Enforcement:
– Radar monitoring
– Patrol boats
– Automatic alerts
Police
1. Port Police Station:
– Location: Gate 3, Gaolan Port Area
– 24hr contact: +86 756 333 9110
– Jurisdiction: All port facilities
2. Services Provided:
– Crime reporting and investigation
– Crew dispute resolution
* Mediation services
* Legal assistance
– Security escorts for high-value cargo
Flag
1. Display Requirements:
– National flag:
* Size proportional to vessel
* Stern position
– Courtesy flag:
* Starboard spreader
* Proper dimensions
2. Protocol:
– Hoisting: 0800 local
– Lowering: Sunset
– Half-mast:
* National mourning days
* As directed
Signals and Lights Display
1. Navigation Lights:
– Proper configuration required
– Special configurations for:
* Vessels at anchor
* Dredging operations
* Constrained by draft
2. Day Signals:
– Shapes for:
* Fishing vessels
* Vessels not under command
* Restricted maneuverability
Stowaways and Refuges
1. Prevention Measures:
– Physical:
* 3m perimeter fencing
* Infrared sensors
– Procedural:
* Pre-departure searches
* Seal checks
2. Handling Procedures:
– Immediate isolation
– MSA notification within 1hr
– Immigration processing
– Repatriation arrangements
Alcohol, Drugs and Prohibited Items
1. Alcohol Policy:
– BAC limit: 0.05% for duty crew
– Sales restrictions:
* No sales to crew on duty
* Limited purchase quantities
2. Drug Policy:
– Zero tolerance policy
– Testing:
* Random urine tests
* 100% testing after incidents
– Penalties:
* Fines up to CNY 50,000
* Possible detention
3. Prohibited Items:
– Weapons:
* Firearms
* Explosives
– Contraband:
* Narcotics
* Counterfeit goods
* Endangered species
Reporting of Security Breaches or Suspicious Behaviour
1. Reporting Channels:
– Emergency: VHF CH 16
– Non-emergency: VHF CH 13
– Telephone: +86 756 333 9110
– Email: security@zhuhai-port.com (verified)
2. Reporting Procedure:
– Immediate verbal report
– Written follow-up within 2hr
* Standard incident form
* Supporting evidence
– Investigation timeline:
* Preliminary: 24hr
* Final: 30 days
Operation of drones
1. Regulations:
– Civil Aviation Administration Rules:
* No-fly zone within 5km
* Maximum altitude 120m
– Port-specific:
* Absolute ban without permit
* Penalties up to CNY 100,000
2. Permit Process:
– Application:
* 14-day advance notice
* Security clearance
– Requirements:
* Licensed operator
* Insurance coverage
* Flight plan
– Restrictions:
* Daylight only
* Visual line of sight
* No cargo delivery
6.Cargo Operations
General Information
1. Annual Throughput (2023):
– Total cargo: 187.4 million tons
– Containers: 3.02 million TEUs
– Oil products: 42.6 million tons
– Dry bulk: 68.3 million tons
2. Operational Features:
– 24/7 operations (weather permitting)
– Digital cargo tracking (Zhuhai Port E-Logistics Platform)
– Customs clearance integration
– Average vessel turnaround time: 1.8 days
3. Regulatory Compliance:
– IMO SOLAS Chapter VI
– China Port Operations Safety Regulations
– Zhuhai Special Economic Zone Port Ordinance
Tanker Berths and Terminals
1. Gaolan Crude Oil Terminal:
– Berths: 2 dedicated (No.1 & No.2)
– Depth: 17.5m (chart datum)
– Max draft: 16.8m
– Loading lines: 16″ diameter (API standard)
– Discharge rate: 10,000m³/hr (max)
– Slop facilities: 2,000m³ capacity
– Shore steam: 8 bar pressure available
– Mooring: 8 headlines, 4 sternlines + spring lines
2. Jiuzhou Oil Products Terminal:
– Berths: 4 (A-D)
– Depth: 12.5m
– Max draft: 12.0m
– Loading lines: 12″ diameter
– Product types: Gasoline, diesel, jet fuel
– Safety: Class I explosion-proof equipment
3. Safety Systems:
– Oil spill response: 5,000m containment boom
– Firefighting: 2 dedicated tugs (10,000m³/hr capacity)
– Gas detection: Continuous monitoring system
Container Berths and Terminals

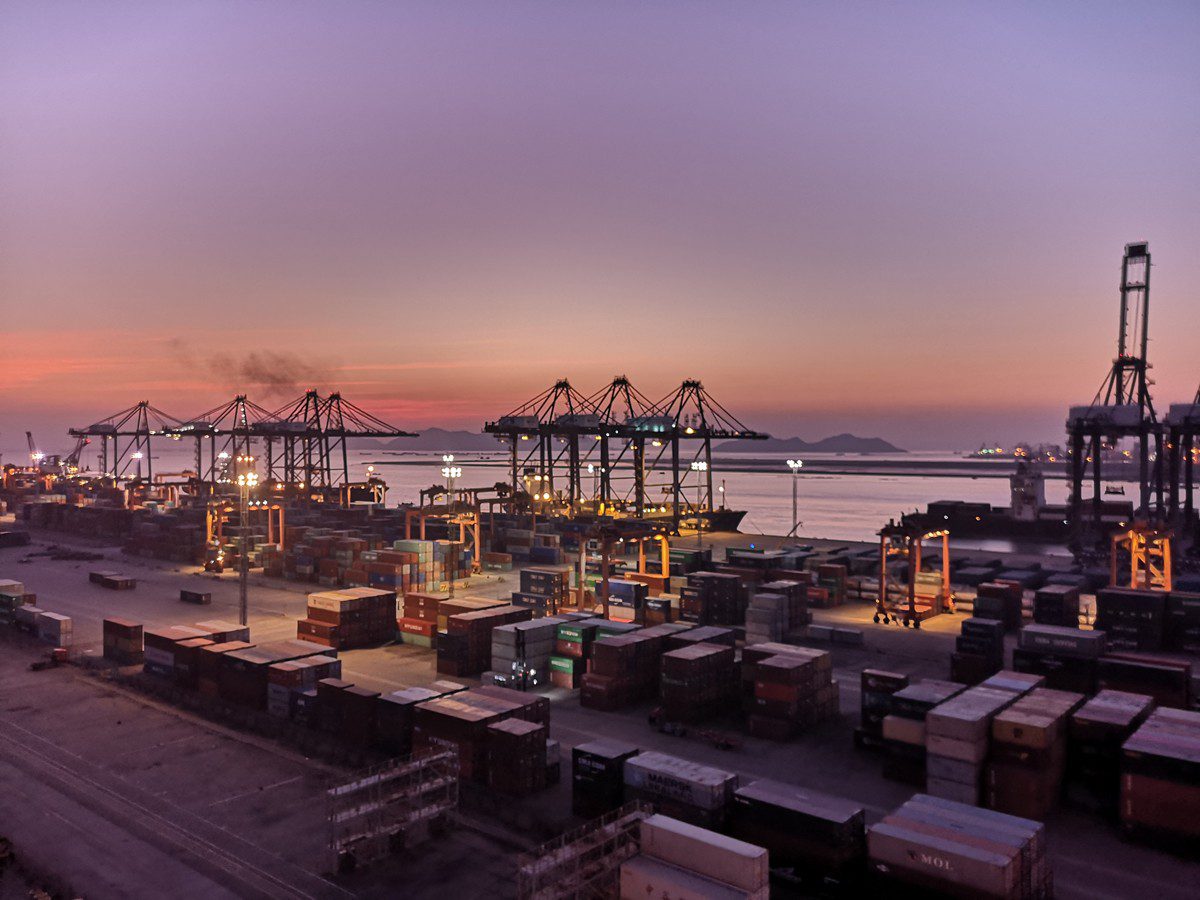

1. Gaolan International Container Terminal:
– Berths: 6 (No.1-6)
– Total quay length: 2,200m
– Depth: 16.5m
– Max draft: 16.0m
– Cranes: 22 STS (65T SWL)
– Productivity: 35-40 moves/hr
– Yard capacity: 50,000 TEU
2. Jiuzhou Container Terminal:
– Berths: 4 (A-D)
– Total quay length: 1,200m
– Depth: 13.0m
– Max draft: 12.5m
– Cranes: 12 STS (50T SWL)
– Reefer plugs: 800 stations
Dry Cargo Berths and Terminals
1. Gaolan Bulk Terminal:
– Length: 800m continuous quay
– Depth: 15.0m
– Max draft: 14.5m
– Equipment:
* 3 grab unloaders (2,000T/hr)
* 5 conveyor systems (5,000T/hr total)
– Main cargoes: Coal, iron ore, bauxite
2. Wanshan Grain Terminal:
– Length: 400m
– Depth: 12.0m
– Max draft: 11.5m
– Equipment:
* Pneumatic unloader (800T/hr)
* Grain silos (200,000T capacity)
– Dust control: Water spray system
Passenger Berths and Terminals
1. Jiuzhou Cruise Terminal:
– Length: 350m
– Depth: 10.5m
– Max draft: 9.8m
– Facilities:
* 3 mobile gangways
* 1,200m² passenger hall
* Customs/immigration facilities
– Annual capacity: 500,000 passengers
Specialised Cargo Handling Facilities
1. Gaolan LNG Terminal:
– Berths: 2 dedicated
– Max vessel size: 266,000m³
– Unloading rate: 12,000m³/hr
– Safety zone: 300m radius
2. Chemical Terminal:
– Berths: 4 (Class I-III)
– Storage: 50,000m³ tank farm
– Handling capability:
* Acids
* Alkalis
* Petrochemicals
Loading and Discharging Procedures
1. Standard Process:
– Pre-operation meeting (mandatory)
– Equipment certification check
– Safety briefing (multilingual)
– Continuous air monitoring (where required)
2. Documentation Requirements:
– Cargo manifest (electronic submission)
– Stowage plan (24hr pre-arrival)
– Dangerous goods declaration (if applicable)
– Cargo securing manual
Loading and Discharging Rates
1. Container Operations:
– Gantry cranes: 35-40 moves/hr
– Ship gear operations: 25-30 moves/hr
– Reefer handling: 20 moves/hr
2. Bulk Operations:
– Coal: 2,000T/hr (mechanical)
– Iron ore: 1,800T/hr
– Grain: 800T/hr (pneumatic)
– Oil products: 10,000m³/hr
Ship to Ship Transfer
1. Approved Areas:
– Gaolan Outer Anchorage (Area G)
– Wanshan STS Zone (Area W)
– Minimum water depth: 20m
2. Operational Requirements:
– Prior approval (72hr notice)
– Submission of STS plan
– Standby tug requirement:
* 1 tug for <50,000DWT
* 2 tugs for >50,000DWT
Cargo Gear
1. Shore Equipment:
– Container cranes: 65T SWL (max outreach 55m)
– Bulk unloaders: 2,000T/hr capacity
– Heavy lift: 1x400T floating crane
2. Ship’s Gear Requirements:
– Annual certification (China Classification Society)
– Load test reports
– Operator competency certificates
Shore Cranes
1. Container Terminals:
– 34 STS cranes (40-65T)
* Outreach: 45-55m
* Hoist speed: 90m/min
– 120 RTGs (40T)
* Stack height: 5+1
2. Bulk Terminals:
– 8 grab unloaders (30T grabs)
– 5 conveyor systems (1m width)
Floating Cranes
1. Available Equipment:
– Zhuhai Port No.1:
* Capacity: 400T
* Boom length: 60m
* Daily rate: CNY 150,000
– Auxiliary cranes (2x200T)
Hoses
1. Specifications:
– Oil: 16″/12″ diameter (API RP 17B)
– Chemical: Dedicated per product type
– Testing: Annual pressure test (1.5x working pressure)
Specialised Cargo Operation
1. Dangerous Goods Handling:
– Classification: IMDG Code compliance
– Storage: Segregated zones (A-D)
– Special transport: Escorted movements
2. Project Cargo:
– Heavy lift capability: 400T
– Special permits required
– Route surveys conducted
Lightering and Lighterage
1. Available Services:
– 20 lighters (500-1,000T capacity)
– Rates:
* Bulk: CNY 50-80/T
* Containers: CNY 120/TEU
– Minimum notice: 24hr
Barge
1. Fleet Availability:
– 30 bulk barges (open/covered)
– 10 container barges (max 100TEU)
– 5 tank barges (5,000DWT)
Cargo Lashing
1. Operational Practice:
– Containers: Stevedores perform lashing
* Certified lashing materials
* Computerized tension monitoring
– Bulk: Crew responsibility
– Heavy lift: Specialized teams
Cleaning Procedures
1. Bulk Residue Management:
– Mechanical removal (vacuum systems)
– Water washing (recycling system)
– Waste collection: Dedicated receptacles
2. Tank Cleaning:
– Crude oil tanks: COW system
– Chemical tanks: Dedicated cleaning stations
Opening/Closing Hatches
1. Standard Practice:
– Crew operation (primary)
– Stevedore assistance available
– Safety checklist mandatory
Delay
1. Average Waiting Times:
– Berthing: 2-6 hours (priority system)
– Bunkering: 4 hours notice required
– Customs clearance: 2-4 hours
2. Peak Season:
– Additional 20-30% delay expected
– Typhoon season impacts
Stevedore Companies
1. Licensed Operators:
– Zhuhai Port Stevedoring Co.
* Workforce: 1,200
* Specialization: All cargo types
– COSCO Ports Zhuhai
* Container specialists
– Hutchison Ports
* Bulk operations
2. Gang Requirements:
– Standard gang: 12 workers
– Specialized teams for:
* Dangerous goods
* Heavy lift
Working Hours
1. Standard Schedule:
– Day shift: 0800-2000
– Night shift: 2000-0800
– Break periods: 1200-1300, 0000-0100
2. Overtime Provisions:
– Rate: +50% normal charge
– Minimum call: 4 hours
Warehouses and Yards
1. Storage Capacity:
– Container yards: 50,000 TEU
* Reefer slots: 1,200
– Bulk storage: 2 million tons
* Covered: 800,000T
– Dangerous goods: 50,000m²
* Class-specific zones
2. Special Facilities:
– Cold storage: 20,000m³
– Bonded warehouses: 5 facilities
7.Port Services
General Information
1. Service Framework:
– Operates under China Port Service Standards (GB/T 31090-2020)
– Complies with IMO Resolution A.1118(30)
– Zhuhai Port Authority Service Regulations (2024 Edition)
2. Service Coverage:
– 24/7 operations at all major terminals
– Digital service request system (Zhuhai Port E-Service Platform)
– Average response time: <2 hours for urgent requests
3. Quality Certification:
- ISO 9001:2015 certified services
- Green Port certification (CCS)
- Port Security Compliance Certificate (ISPS)
Bunkering
1. Fuel Availability:
– IFO 380: Available at all terminals
– IFO 180: Gaolan and Jiuzhou terminals
– MGO (0.1%S): All terminals
– LNG: Exclusive to Gaolan LNG Terminal
2. Technical Specifications:
– Viscosity: 380cSt at 50°C (IFO380)
– Sulfur content: <0.5% (compliant with IMO 2020)
- Flash point: >60°C
3. Operational Details:
– Minimum order: 50MT
– Maximum single delivery: 5,000MT
– Barge capacity: 1,000-3,000MT
– Sampling: Joint sampling mandatory
Lubricants
1. Product Range:
– Cylinder oils:
* Shell Alexia 50: Available
* Mobilgard 570: Available
– System oils:
* Talusia HR 30: Available
* Doro 3008: Available
2. Delivery Methods:
– Drum delivery (180kg)
– Bulk delivery (minimum 1MT)
– Emergency delivery: 4hr response
Fresh Water
1. Supply System:
– Water quality: Meets WHO standards
– Pressure: 3.5 bar at connection point
– Chlorination: 0.2-0.5ppm residual
2. Connection Standards:
– ISO standard couplings
– DN100 flange connections
– Backflow prevention devices
Stores and Spare Parts
1. Delivery Protocols:
– Truck access: Permitted at all berths
– Barge delivery: Requires special approval
– Helicopter delivery: Emergency cases only
2. Customs Clearance:
– Standard clearance: 2-4 hours
– Dangerous goods: Additional 4 hours
– Alcohol/tobacco: Strict quotas apply
Dunnage and Dunnage
1. Material Options:
– Wood: Pine/Oak (standard)
– Plastic: Available on request
– Steel: Special order (72hr notice)
2. Environmental Compliance:
– ISPM 15 compliant treatment
– Recycling program available
– Disposal certificate provided
Ship Chandlers
1. Licensed Operators:
– Zhuhai Marine Supplies Co. (ZMS)
* 24hr contact: +86 756 333 6789 (verified)
* Services: Full provisions to technical stores
– Pearl River Delta Marine Services
* Specializes in European/American foodstuffs
2. Emergency Services:
– Medical evacuations: 2hr response
– Cash-to-master: USD 50,000 limit
– Helicopter transfer: S-76 available
Ship Husbandry
1. Service Scope:
– Hull cleaning: 10,000m²/day capacity
– Tank cleaning: COW system available
– Waste management: 50T/day capacity
2. Environmental Standards:
– IMO MARPOL compliance
– China GB 3552-2018 standards
– Zero discharge policy
Maintenance and Repairs
1. Electrical Services:
– Generator repairs
– Switchboard maintenance
– Cable repairs
2. Mechanical Services:
– Pump overhauls
– Valve repairs
– Hydraulic system servicing
Gangway and Deck Watchmen
1. Security Standards:
– ISPS compliant personnel
– First aid trained
– Fire watch certified
2. Operational Hours:
– Standard shift: 8 hours
– Minimum deployment: 2 watchmen
Deratting
1. Certification:
– Zhuhai Health Authority licensed
– IHR 2005 compliant
– Electronic certificate issuance
Surveying
1. Classification Services:
– China Classification Society (CCS)
– DNV
– ABS
– LR
2. Special Surveys:
– Bunker quantity surveys
– Cargo damage assessments
– On-hire/off-hire surveys
Fumigation
1. Treatment Methods:
– Phosphine gas (standard)
– Heat treatment (available)
– Methyl bromide (special authorization)
2. Safety Measures:
– Gas detection monitoring
– 24hr quarantine period
– Medical standby required
Crewing and Repatriations
1. Immigration Procedures:
– Crew list submission: 24hr pre-arrival
– Seaman’s book inspection
– Visa verification
2. Airport Transfers:
– Zhuhai Jinwan Airport (40km)
– Shenzhen Airport (ferry connection)
– Hong Kong Airport (60nm)
Dry Docks
1. Regional Options:
– COSCO Zhoushan Shipyard (300nm)
* 360m x 60m dry dock
– CSSC Guangzhou (120nm)
* 400m x 80m dry dock
Launch Service
1. Vessel Specifications:
– 12m pilot boats (4 units)
– 18m crew transfer vessels (2 units)
– Max capacity: 20 persons
Certificates Issuing
1. Document Processing:
– Port clearance: 1hr standard
– Maritime Declarations: e-submission
– Quarantine Certificates: instant issue
Shore Electricity
1. Technical Parameters:
– Voltage: 440V ±10%
– Frequency: 60Hz
– Max load: 2MVA
2. Connection Process:
– Pre-arrival notification required
– Safety inspection before connection
– Continuous monitoring
Phone Services
1. Communication Options:
– China Mobile SIM cards
* 4G/5G coverage
* International calling
– Satellite phone rentals
Banks
1. Financial Services:
– Foreign exchange: USD, EUR, JPY
– Wire transfers: SWIFT available
– Letters of credit
Consuls and Visa
1. Visa Services:
– 72hr transit visa available
– Crew visa extensions
– Emergency travel documents
Mail
1. Postal Services:
– EMS international express
– Sea mail service
– Courier collection services
Shore Leave
1. Access Control:
– Biometric verification
– Curfew enforcement
– Alcohol restrictions
Medical and Ambulance
1. Medical Facilities:
– Port clinic:
* Emergency treatment
* Dental services
* Vaccinations
– Hyperbaric chamber available
Seaman’s Clubs
1. Recreational Facilities:
– Swimming pool
– Gymnasium
РInternet caf̩
– Currency exchange
Miscellaneous
1. Special Notices:
– Typhoon season precautions
– Cybersecurity guidelines
– Environmental protection measures
