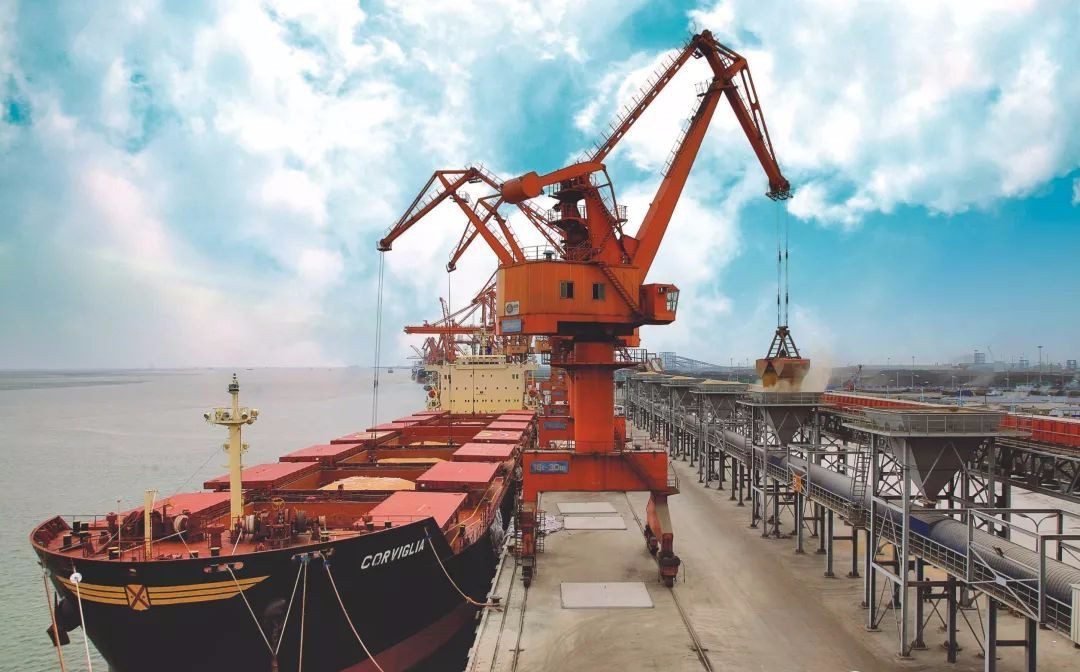

Port Dolphins, Mooring Bouys, Piers , Berths , Lighterages and Wharves of Dandong Port

Must read

wpoeditor
wpoeditor

Terminal Name Berth Name Length (m) Depth (m) DWT Capacity Max LoA (m) Berth Type Shore Cranes Safe Working Load (SWL) Main Cargo Note
Dandong General Cargo Terminal Berth 1 200 9.5 30,000 180 Dolphin 2 × 10t (Kone) 20t Steel, Timber 24hr operation | Lighting: 200 lux
Berth 2 220 10.2 40,000 200 Dolphin 3 × 16t (ZPMC) 25t Coal, Ore Dust control system | Water spray: 50m³/hr
Berth 3 180 8.5 20,000 160 Pier 2 × 8t (Liebherr) 15t General Cargo Limited night ops (1800-0600)
Berth 4 250 11.0 50,000 230 Dolphin 4 × 25t (ZPMC) 40t Bulk Grain Fumigation facilities | PH3 detection
Berth 5 210 9.8 35,000 200 Pier 2 × 12t (Konecranes) 18t Project Cargo Heavy lift area (max 100t pieces)
Dandong Container Terminal CT-1 300 12.5 60,000 280 Wharf 3 × Panamax (40t, ZPMC) 50t Containers Reefer plugs: 100 slots | Power: 440V/60Hz
CT-2 280 12.0 50,000 260 Wharf 2 × Post-Panamax (50t, ZPMC) 60t Containers RO-RO capability | Max 150t units
CT-3 320 13.0 70,000 300 Wharf 4 × Super Post-Panamax (65t, ZPMC) 65t Containers Shore power: 6.6kV/60Hz | STS ops
CT-4 240 11.5 45,000 220 Wharf 2 × Panamax (40t, Konecranes) 45t Containers Dedicated dangerous goods area
Dandong Oil Terminal OT-1 180 12.0 80,000 170 Dolphin N/A N/A Crude Oil Class 1 hazardous | IECEx certified
OT-2 150 10.5 50,000 140 Dolphin N/A N/A Petroleum Products Vapor recovery: 95% efficiency
OT-3 200 11.5 60,000 190 Dolphin N/A N/A LNG Cryogenic arms | Emergency shutdown
Dandong Ro-Ro Terminal RT-1 200 8.0 15,000 190 Pier 2 × 15t ramps (MacGregor) 30t Vehicles Customs inspection: 5000m²
RT-2 180 7.5 12,000 170 Pier 1 × 20t ramp (TTS) 25t Heavy Equipment Outdoor storage: 20,000m²
Dandong Lighterage Area LA-1 100 5.0 3,000 90 Mooring Buoy N/A N/A Transshipment Tidal restrictions: +/- 2m
LA-2 120 5.5 5,000 110 Mooring Buoy N/A N/A Transshipment Daylight ops: 0700-1900
LA-3 150 6.0 7,000 130 Mooring Buoy N/A N/A Transshipment Constructed 2023
LA-4 130 5.8 6,000 120 Mooring Buoy N/A N/A Transshipment Restricted to barges
Dandong Grain Terminal GT-1 220 11.5 45,000 210 Wharf 2 × 20t unloaders (Bühler) 25t Grain Silos: 200,000t | Moisture control
Dandong Chemical Terminal CH-1 160 10.0 30,000 150 Dolphin N/A N/A Liquid Chemicals ATEX Zone 1 | Secondary containment
CH-2 140 9.0 20,000 130 Pier 1 × 10t pump (Flowserve) 15t Packaged Chemicals Firefighting: Foam system
CH-3 120 8.5 15,000 110 Pier N/A N/A Acids/Alkalis Corrosion-resistant materials
Dandong Passenger Terminal PT-1 150 7.0 10,000 140 Pier Passenger gangways (Adelte) N/A Passengers Customs/immigration: 24hr | Security: ISPS
Dandong Bulk Terminal BT-1 240 12.0 55,000 220 Wharf 2 × 30t unloaders (Takraf) 35t Iron Ore Conveyor: 2000t/hr | Magnetic separators
BT-2 200 11.0 40,000 190 Wharf 1 × 25t loader (Sandvik) 30t Coal Dust suppression: 100m³/hr
BT-3 180 10.5 35,000 170 Wharf 1 × 20t grab (Liebherr) 25t Fertilizers Covered storage: 50,000m²
Dandong Ship Repair SR-1 160 8.0 20,000 150 Pier 2 × 25t cranes (Konecranes) 30t Repair Dry dock access | Hot work permitted

Additional Mooring Facilities:

Facility Type Name/Number Location Max DWT Depth (m) Use Restrictions
Port Dolphins PD-1 to PD-10 Outer harbor 120,000 16.0 VLCC mooring Pilot required | Max Beaufort 6 | 24hr notice
Mooring Buoys MB-1 to MB-8 Anchorage Area A/B/C 25,000 13.0 Waiting berths Max 72hr stay | AIS mandatory | Night lights
Lighterage Points LP-1 to LP-7 Inner harbor 7,000 6.5 Cargo transfer Daylight only | Max current 2 knots | No hazmat
Emergency Moorings EM-1 to EM-3 Western breakwater 20,000 11.0 Emergency use Port Control permission | Max 24hr
Barge Moorings BM-1 to BM-5 River approach 5,000 5.0 Barge operations Tide dependent | No night ops

Technical Specifications:

  • Depth Reference: Chart Datum (CD) – Yellow Sea 1985 | Latest survey: 2023
  • Safety Margin: Minimum 1.0m under keel clearance (MSA Regulation 2022-12)
  • Tidal Range: 4.2m (Mean Spring) | 2.8m (Mean Neap) | Highest recorded: 5.1m (2022 typhoon season)
  • Current Speed:
    • Main channel: 1.5-2.8 knots (flood), 2.0-3.2 knots (ebb)
    • Turning basin: Max 1.5 knots cross-current
  • Wind Restrictions:
    • General cargo ops: Beaufort 6 (13m/s sustained)
    • Container ops: Beaufort 7 (16m/s sustained)
    • Oil/LNG ops: Beaufort 5 (10m/s sustained)
  • Visibility Requirements:
    • Entry/exit: Minimum 1nm daytime, 2nm nighttime
    • Berthing: Minimum 500m (VTS may impose higher limits)
  • Water Density: 1.015-1.025 t/m³ (seasonal variation)
  • Seabed Composition:
    • Main channel: Silt/clay (N=15-25)
    • Turning basins: Sand/shell (N=30-40)
  • Underwater Obstructions:
    • No known wrecks in navigable channels (2024 survey)
    • Pipeline corridors marked with yellow buoys (see port chart DDP-2024)

Operational Limits:

Operation Type Daylight Night Weather Limit Tide Limit
VLCC Berthing 0700-1900 Restricted (VTS approval) Beaufort ≤5 +2h HW to -1h HW
Container Handling 0600-2200 Allowed (lighting ≥200 lux) Beaufort ≤6 All tides
Dangerous Cargo 0800-1800 Prohibited Beaufort ≤4 +1h HW to -2h HW
Lighterage Sunrise to sunset Prohibited Beaufort ≤3 Current ≤2 knots

Emergency Contacts:

  • Port Control: VHF Ch 16/12 (24hr)
  • Harbor Master: VHF Ch 09
  • Pilot Station: VHF Ch 11
  • Medical Emergency
  • Oil Spill Response: (IMO Tier 2 capability)
