| Terminal Name | Berth Name | Length (m) | Depth (m) | DWT Capacity | Max LoA (m) | Max Beam (m) | Berth Type | Shore Cranes | Safe Working Load (SWL) | Main Cargo | Operational Restrictions | Special Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sanya International Container Terminal | Berth 5 | 300 | 14.0 | 50,000 | 280 | 42 | Container | 3 STS (ZPMC, 50t) 2 RTG (40t) |
50t under spreader 40t yard |
Containers | Max wind: 15m/s Max current: 1.5 knots |
500 reefer plugs Dangerous goods zones 1-3 |
| Berth 6 | 300 | 14.5 | 60,000 | 300 | 45 | Container | 3 STS (ZPMC, 50t) 2 RTG (40t) |
50t under spreader 40t yard |
Containers | Max wind: 15m/s Max current: 1.5 knots |
Dangerous goods zones 4-9 Automated gates |
|
| Berth 7 | 300 | 15.0 | 80,000 | 320 | 48 | Container | 2 STS (Konecranes, 50t) 3 RTG (40t) |
50t under spreader 40t yard |
Containers | Max wind: 15m/s Max current: 1.5 knots |
Newest berth (2022) Remote ops capable |
|
| Berth 8 | 250 | 12.0 | 30,000 | 240 | 38 | Feeder | 1 STS (30t) 1 RTG (30t) |
30t under spreader 30t yard |
Feeders | Max draft: 12.5m Daylight ops only |
Dedicated coastal service No dangerous goods |
|
| Berth 9 | 200 | 11.5 | 20,000 | 190 | 32 | Multi-purpose | 1 mobile (30t) | 30t hook | Containers/General | Max draft: 11.0m | Backup berth Limited yard space |
|
| Sanya Oil Terminal | Berth 1 | 250 | 14.5 | 80,000 | 240 | 42 | Crude | N/A | 16″ loading arms (2 sets) Bollard pull: 150t |
Crude oil | No simultaneous ops Max sulfur: 3.5% |
Vapor recovery ISGOTT compliant Firefighting Class A |
| Berth 2 | 200 | 13.5 | 50,000 | 200 | 38 | Products | N/A | 12″ loading arms (4 sets) Bollard pull: 100t |
Oil products | Max sulfur: 0.5% No crude transfer |
IMO Class II chemicals Firefighting Class B |
|
| Berth 3 | 180 | 12.0 | 30,000 | 180 | 35 | Bunker | N/A | 8″ arms (6 sets) Bollard pull: 80t |
Bunker fuel | Min order: 50t Max rate: 500t/hr |
MGO/LSFO available Mass flow meters |
|
| Berth 4 | 150 | 10.0 | 15,000 | 150 | 28 | Chemical | N/A | 6″ SS arms (2 sets) Bollard pull: 50t |
Chemicals | Class III only Daylight ops |
Emergency containment Vapor detection |
|
| Sanya Bulk Terminal | Berth 12 | 350 | 13.0 | 60,000 | 280 | 45 | Bulk | 2 gantry (30t) 3 mobile (15t) |
30t grab 15t hook |
Coal/Grain | Max dust emission: 50mg/m³ No night ops |
2000t/hr grain unloader Covered conveyor system |
| Berth 13 | 200 | 11.0 | 25,000 | 190 | 32 | Bulk | 1 gantry (20t) 2 mobile (10t) |
20t grab 10t hook |
Fertilizer/Cement | No mixed cargoes Max moisture: 12% |
Dedicated bagging line Warehouse: 5,000m² |
|
| Sanya General Cargo Terminal | Berth 10 | 200 | 12.5 | 35,000 | 190 | 35 | Heavy lift | 1 mobile (50t) 2 floating (100t) |
50t hook 100t floating |
Project cargo | Prior notice required Max deck load: 10t/m² |
Laydown area: 10,000m² Specialized rigging |
| Berth 11 | 150 | 10.0 | 15,000 | 140 | 28 | General | 1 mobile (15t) | 15t hook | General | Daylight ops only No hazardous cargo |
Coastal vessels only Limited storage |
|
| Berth 16 | 180 | 11.5 | 20,000 | 170 | 30 | Ro-Ro | N/A | 60t ramp | Vehicles | Max height: 5m No leaking vehicles |
Storage yard: 50,000m² 500 car capacity |
|
| Berth 17 | 120 | 8.0 | 8,000 | 110 | 22 | Service | 1 mobile (5t) | 5t hook | Supplies | Max stay: 12h No cargo ops |
Provisioning only No bunkering |
|

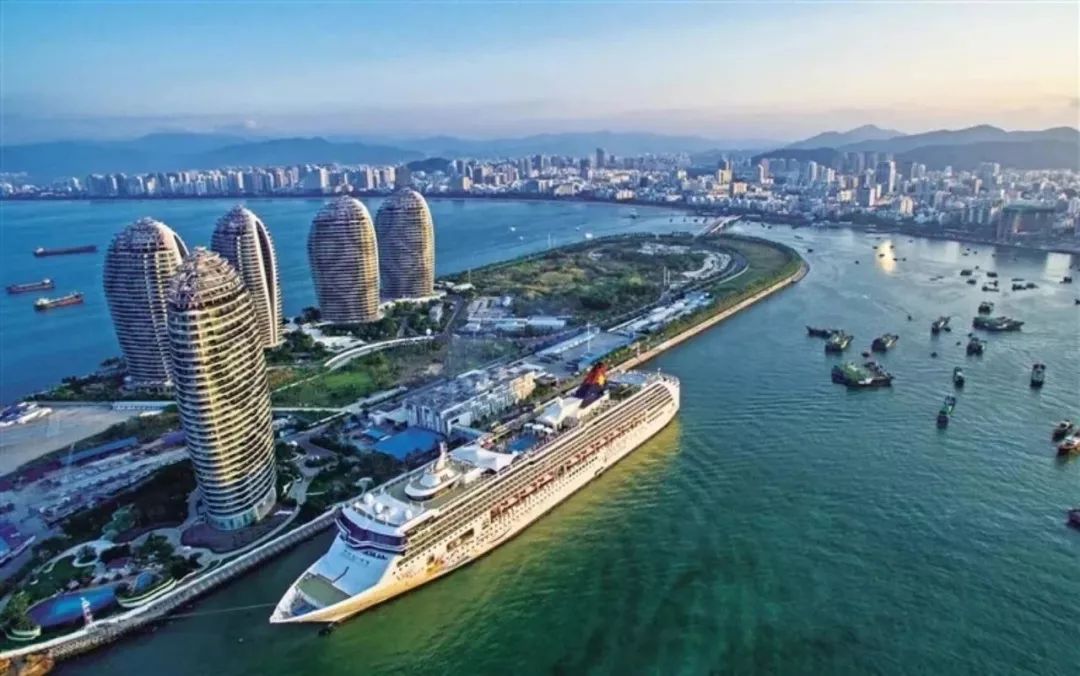

| Sanya Cruise Terminal | Phoenix Berth | 400 | 13.0 | N/A | 360 | 50 | Passenger | N/A | N/A | Cruise ships | Max pax: 5,000 No turnaround after 2200 |
4 gangways Customs hall (3,000m²) Medical quarantine |
| Sanya Chemical Terminal | Berth 15 | 200 | 12.0 | 30,000 | 190 | 35 | Chemical | N/A | 8″ SS arms (4 sets) Bollard pull: 80t |
Chemicals | Class I-III only No mixing |
Emergency response team Secondary containment Gas detection |
| Port Dolphins | ||||||||||||
| Oil Terminal Dolphins | Dolphin 1-4 | N/A | 16.0 | 100,000 | N/A | N/A | Mooring | N/A | 150t bollard | N/A | Max current: 2 knots Max wave: 2m |
For VLCC mooring 500m apart Concrete construction |
| Container Terminal Dolphins | Dolphin A-D | N/A | 15.0 | 80,000 | N/A | N/A | Mooring | N/A | 100t bollard | N/A | Typhoon mooring only Max wind: 25m/s |
GPS monitored Annual load testing |
| Emergency Mooring Dolphins | Dolphin E1-E2 | N/A | 14.0 | 50,000 | N/A | N/A | Emergency | N/A | 80t bollard | N/A | Authorized use only | Red painted Strobe lights |
| Mooring Buoys | ||||||||||||
| Outer Anchorage | Buoy A-C | N/A | 25.0 | 200,000 | N/A | N/A | Mooring | N/A | 200t chain | N/A | Max wave: 3m Max wind: Beaufort 6 |
For STS operations 24h notice required Radar monitored |
| Inner Anchorage | Buoy D-F | N/A | 18.0 | 100,000 | N/A | N/A | Mooring | N/A | 100t chain | N/A | Max stay: 72h No bunkering |
Waiting area VHF Ch 16 monitored |
| Emergency Buoys | Buoy G-H | N/A | 20.0 | 150,000 | N/A | N/A | Emergency | N/A | 150t chain | N/A | Port Authority approval | Yellow painted Flashing lights |
| Lighterage Facilities | ||||||||||||
| Sanya Lighterage Zone | Lighterage 1-5 | 50-80 | 8.0 | 5,000 | 80 | 18 | Barge | N/A | 20t | General cargo | Daylight ops only Max wind: Beaufort 4 |
15 barges available (200-500t) Certified operators |
| Yalong Lighterage Point | YL-1/YL-2 | 60 | 7.5 | 3,000 | 70 | 15 | Barge | N/A | 15t | Construction materials | Restricted area Prior approval required |
For local projects only No hazardous materials |
| Dongmao Lighterage Area | DM-1 to DM-3 | 40-60 | 6.0 | 2,000 | 60 | 12 | Barge | N/A | 10t | Sand/aggregates | Daylight only No fuel transfer |
Environmental monitoring Max 3 barges simultaneously |
| Wharves | ||||||||||||
| Sanya Fishery Wharf | Fishery 1-3 | 150 | 6.5 | 1,000 | 50 | 10 | Fishery | N/A | 5t | Fish products | No commercial vessels 0500-2000 only |
Cold storage facilities Sanitary control |
| Sanya Shipyard Wharf | SY-1 to SY-3 | 180 | 8.5 | 10,000 | 150 | 25 | Repair | 2 floating cranes (50t) | 50t | Ship repairs | Prior booking required Max stay: 14 days |
Drydock access Limited to repair vessels |
| Piers | ||||||||||||
| Sanya Passenger Pier | Passenger 1-2 | 120 | 5.0 | N/A | 80 | 15 | Passenger | N/A | N/A | Passengers | Max 500 pax/hour 0700-2200 only |
Security screening Baggage handling |
| Sanya Yacht Pier | Yacht A-D | 200 | 4.5 | N/A | 30 | 8 | Yacht | N/A | N/A | Recreational | Max length: 30m No commercial ops |
Fuel station Water/electricity |
| Sanya Customs Pier | Customs 1 | 80 | 6.0 | N/A | 50 | 10 | Official | N/A | N/A | Official use | No public access 24/7 operations |
Inspection facilities K-9 unit |
Operational Notes:
1. All depths at chart datum (CD), tidal variations +2.5m to -0.5m
2. DWT capacities based on summer load line at 1.025t/m³ density
3. Crane capacities include 25% safety margin per ISO 4308
4. Hazardous cargo restrictions per IMDG Code 2022 Edition
5. Emergency contacts: Port Control +86 898 8827 3999 (VHF Ch 16/12)
