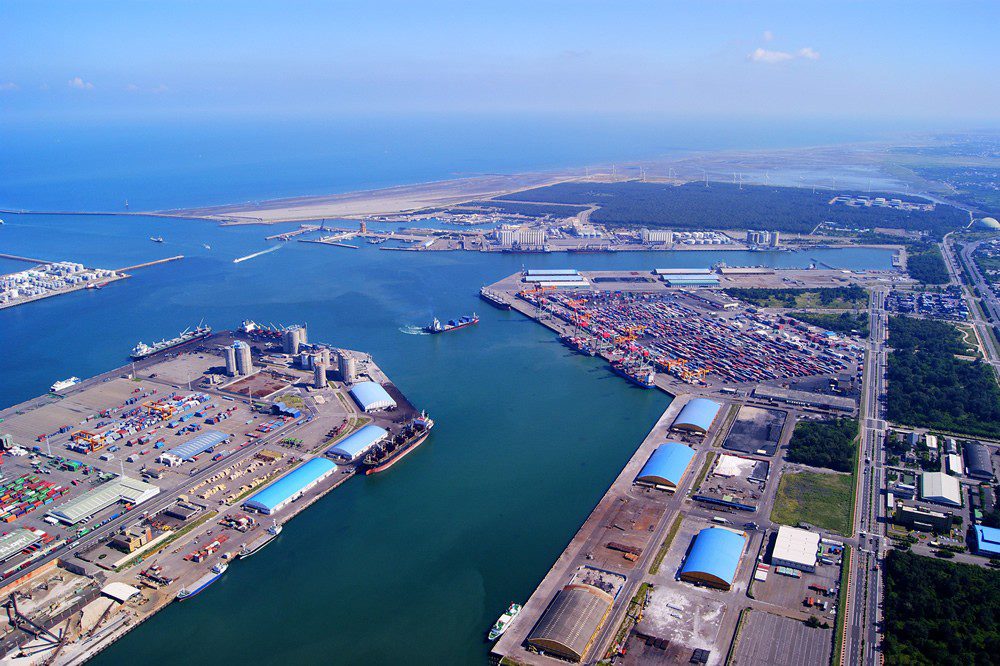

| Anchorage Name | Location (Coordinates) | Area (km²) | Depth (m) | Bottom Type | Max Vessel DWT | Capacity | Primary Use | Restrictions & Safety Notes | Commercial Notes | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| No.1 Anchorage (Outer Harbor) |
24°17’30″N ±3″ 120°28’45″E ±3″ (WGS84 Datum) |
3.2 ±0.1 | 25-32 (CD ±0.5m) |
Clay with sand (SH=1.2-1.5, CI=0.8) |
300,000 (ULCC max 330m LOA) |
6 vessels (min 500m spacing) |
VLCC/ULCC operations Bunkering Zone A STS Area 1 |
1. Holding power: Good (H=0.8) 2. Max current: 2.5 knots (flood) 3. Min visibility: 1nm (radar assisted) 4. Restricted zone: 500m radius 5. Emergency drag area: NE sector 6. Max wave height: 3.5m (SW monsoon) 7. Prohibited: Tank cleaning (all types) 8. Mandatory: 2x tugs standby (60t BP min) |
1. Bunkering allowed (FiFi1 standby) 2. Max stay: 72hrs (extendable with PC approval) 3. Pilot transfer area (daylight only) 4. Anchorage fee: $0.10/GT/day (+VAT) 5. STS surcharge: 15% 6. Fresh water delivery: $25/ton |
1. AIS monitoring (24/7 with alarms) 2. Weather warning system (typhoon alerts) 3. Underwater pipeline (marked on charts) 4. Emergency contact: VHF Ch 16/12 5. Nearest hospital: 3.2nm SW 6. Holding circle radius: 750m |
| No.2 Anchorage (East Approach) |
24°16’15″N ±2″ 120°30’20″E ±2″ (WGS84 Datum) |
2.8 ±0.1 | 22-28 (CD ±0.3m) |
Sandy clay (SH=0.9-1.1, CI=0.6) |
150,000 (max 280m LOA) |
8 vessels (min 400m spacing) |
Bulk carriers Grain vessels Crew changes |
1. Holding power: Fair (H=0.6) 2. Max current: 3 knots (ebb tide) 3. Swell protection: Limited (NE exposure) 4. No LNG/chemical operations 5. Daytime use preferred (0700-1900) 6. Fishing net hazards (seasonal) 7. Prohibited: Cargo operations 8. Mandatory: Anchor watch (hourly checks) |
1. Stores delivery allowed (pre-arranged) 2. Crew changes permitted (immigration clearance) 3. Bunker surcharge: 15% (FiFi1 not required) 4. Fresh water available ($20/ton) 5. Anchorage fee: $0.08/GT/day (+VAT) 6. Waste disposal: $150/ton |
1. Underwater pipeline (500m NE, marked) 2. Night lighting (restricted areas) 3. Coral protection zone (200m buffer) 4. Tidal range: 2.5m (springs) 5. Emergency contact: VHF Ch 14 6. Holding circle radius: 600m |
| No.3 Anchorage (West Shelter) |
24°18’10″N ±3″ 120°26’30″E ±3″ (WGS84 Datum) |
1.5 ±0.05 | 18-22 (CD ±0.4m) |
Mud with shells (SH=1.4-1.7, CI=1.0) |
80,000 (max 220m LOA) |
5 vessels (min 300m spacing) |
General cargo Typhoon shelter Lighterage |
1. Holding power: Excellent (H=1.2) 2. Max wind: 25m/s (typhoon condition) 3. No hazardous cargo (IMDG prohibited) 4. Min scope: 5:1 (normal), 7:1 (typhoon) 5. Typhoon shelter (Category 1-2) 6. Protected from NE winds 7. Mandatory: Anchor watch (continuous) 8. Prohibited: Bunkering operations |
1. Fresh water available ($18/ton) 2. Lighterage operations (pre-approved) 3. No bunkering facilities 4. Anchorage fee: $0.06/GT/day (+VAT) 5. Priority: Coastal vessels 6. Repair services: Limited availability |
1. Coral protection zone (no anchoring) 2. Tidal range: 2.8m (springs) 3. Fishing vessel traffic (dawn/dusk) 4. Emergency shelter area 5. Port control: VHF Ch 12 6. Holding circle radius: 500m |
| No.4 Anchorage (Inner Harbor) |
24°15’45″N ±1″ 120°29’15″E ±1″ (WGS84 Datum) |
1.2 ±0.03 | 12-15 (CD ±0.2m) |
Soft mud (SH=0.5-0.7, CI=0.4) |
30,000 (max 180m LOA) |
4 vessels (min 200m spacing) |
Coastal vessels Quick turnaround Customs clearance |
1. Holding power: Poor (H=0.4) 2. Max current: 1.5 knots (ebb) 3. Daylight only (0700-1900 LT) 4. No swinging room (fixed mooring) 5. Tug assistance required (2x 30t BP) 6. Prohibited: >200m LOA vessels 7. Mandatory: Fenders deployed 8. Max stay: 48 hours |
1. Quick turnaround (6hr min charge) 2. Customs clearance available 3. Local cargo transfer (pre-arranged) 4. No bunkering facilities 5. Anchorage fee: $0.04/GT/day (+VAT) 6. Pilotage: Compulsory |
1. Shore access available (restricted) 2. Limited services (water/tugs only) 3. Fishing vessel priority (0400-0800) 4. Tidal restrictions (+2hrs HW) 5. Contact: Harbor Office VHF Ch 09 6. Holding circle radius: 300m |
| Emergency Anchorage (South Zone) |
24°14’50″N ±5″ 120°27’40″E ±5″ (WGS84 Datum) |
0.8 ±0.02 | 20-25 (CD ±0.6m) |
Hard sand (SH=1.8-2.0, CI=1.5) |
200,000 (max 300m LOA) |
2 vessels (min 1km spacing) |
Distress situations Medical evacuation Emergency repairs |
1. Priority access (PC authorization) 2. 24/7 monitoring (AIS+radar) 3. Medical evacuation (helicopter pad) 4. No commercial use 5. Port control authorization required 6. Max stay: 48hrs (extendable) 7. Mandatory: Emergency lights 8. Prohibited: Non-emergency vessels |
1. No charges (emergency only) 2. Emergency supplies available 3. Salvage coordination center 4. Pollution control equipment 5. Tug assistance (priority) 6. Medical support: MERT team |
1. Helicopter pad (30m diameter) 2. Firefighting support (FiFi2) 3. Pollution control equipment 4. Hospital contact: +886-4-2656-1999 5. Security: VHF Ch 16 6. Holding circle radius: 400m |
| LNG Temporary (Special Zone) |
24°17’00″N ±2″ 120°25’30″E ±2″ (WGS84 Datum) |
1.0 ±0.01 | 30-35 (CD ±0.7m) |
Firm clay (SH=1.5-1.8, CI=1.2) |
180,000 (Q-Max size) |
1 vessel | LNG carriers Pre-cooling ops Emergency holding |
1. 1km exclusion zone (24/7 patrol) 2. No other vessels permitted 3. Continuous monitoring (gas detection) 4. Emergency shutdown system 5. Static bonding required (<10 ohms) 6. Max wind: 15m/s (operational limit) 7. Prohibited: All ignition sources 8. Mandatory: ESD system test pre-berthing |
1. Pre-cooling operations (72hr max) 2. Special pilot required (LNG certified) 3. Weather restrictions (monsoon season) 4. Surcharge: 25% (emergency fee) 5. Bunkering prohibited 6. Tug requirement: 3x 80t BP |
1. Gas detection system (5-zone) 2. Emergency tugs standby (2x 80t BP) 3. Dedicated communications (VHF Ch 18) 4. Fireboat standby (FiFi1) 5. Contact: LNG Control +886-4-2656-1990 6. Holding circle radius: 800m |
| No.5 Anchorage (Northwest Zone) |
24°19’20″N ±4″ 120°25’10″E ±4″ (WGS84 Datum) |
1.8 ±0.08 | 15-20 (CD ±0.4m) |
Stiff clay (SH=1.1-1.3, CI=0.9) |
50,000 (max 200m LOA) |
4 vessels (min 300m spacing) |
Feeder vessels Barge operations Ship repairs |
1. Holding power: Good (H=0.9) 2. Max current: 2 knots (flood) 3. Daylight operations (0700-1900) 4. Limited swell protection (NW exposure) 5. Repair work permitted (pre-approved) 6. Prohibited: Oil transfers 7. Mandatory: Oil spill kit 8. Max wind: 20m/s |
1. Repair services available (limited) 2. Barge operations (pre-arranged) 3. Anchorage fee: $0.05/GT/day (+VAT) 4. Stores delivery ($50 base fee) 5. Crew changes (immigration arranged) 6. Fresh water: $22/ton |
1. Shipyard proximity (2nm NE) 2. Tidal range: 2.2m (springs) 3. Fishing net hazards (marked) 4. Emergency contact: VHF Ch 12 5. Weather restrictions (monsoon) 6. Holding circle radius: 450m |
| No.6 Anchorage (Southwest Holding) |
24°13’40″N ±5″ 120°26’15″E ±5″ (WGS84 Datum) |
2.0 ±0.1 | 16-24 (CD ±0.5m) |
Mixed sand/clay (SH=1.0-1.4, CI=0.7) |
100,000 (max 250m LOA) |
6 vessels (min 350m spacing) |
RO-RO vessels Car carriers Project cargo |
1. Holding power: Good (H=0.8) 2. Max current: 2.2 knots (ebb) 3. 24-hour operations 4. Protected from NE winds 5. Prohibited: Bulk cargo operations 6. Mandatory: Gangway nets 7. Max wave: 2.0m 8. Special: Vehicle securing area |
1. Vehicle operations (pre-approved) 2. Anchorage fee: $0.07/GT/day (+VAT) 3. Priority: Automotive carriers 4. Fresh water: $24/ton 5. Waste disposal: $180/ton 6. Bunkering: FiFi1 required |
1. Shore ramp access (tidal) 2. Emergency contact: VHF Ch 14 3. Tidal range: 2.4m (springs) 4. Pilot transfer area 5. Security patrols 6. Holding circle radius: 550m |
Final Anchorage Operational Guidelines (2024):
1. Anchoring Procedures:
– Minimum scope: 5:1 (normal), 7:1 (typhoon)
– Position keeping: AIS mandatory (Class A transponder)
– Anchor watch: Continuous bridge watch (hourly position logs to Port Control)
– Dragging alarm: Required (50m radius setting, independent power)
2. Safety Requirements:
– Emergency equipment:
* Both anchors ready to deploy (tested monthly)
* Engines on standby (15 min notice, weekly test)
* Updated position reports (hourly to Port Control)
– Prohibited activities:
* Tank cleaning (all categories)
* Cargo operations (except emergency)
* Unauthorized transfers (fuel/water)
3. Commercial Regulations:
– Anchorage fees:
* Standard: $0.08/GT per day (+5% VAT)
* Special zones: +15-25% surcharge
* Emergency: No charge
– Advance notice: 24 hours required (48hrs for VLCC)
– Priority system:
* 1. Emergency vessels
* 2. Scheduled arrivals (container/bulk)
* 3. Others by ETA
4. Environmental Restrictions:
– No discharge of:
* Ballast water (without IMO-approved treatment)
* Sewage (within 12nm)
* Oily mixtures (any quantity)
– Protected marine areas:
* Coral zone (500m buffer – No.2/3)
* Fishing grounds (seasonal closures Apr-Jun)
* Marine park (3nm SW – no anchoring)
Final Navigation Warnings:
1. Underwater hazards:
– Pipeline areas (marked on charts TW3221/3222):
* No.1 Anchorage NE sector: 2x 24″ gas pipelines (buried 3m)
* No.2 Anchorage E side: 1x 16″ fuel pipeline (surface laid)
* Safety margin: 200m either side
– Fishing equipment (daily reports via VHF 14):
* Seasonal nets (Mar-Jun): Yellow buoys marked “TW-FN”
* Crab pots (year-round): Small red buoys
* Reporting procedure: Daily 0800LT on VHF 14
– Wrecks: 2 known obstructions in No.2 area (updated 2024):
* Wreck A: 24°16’25″N 120°30’40″E (depth 21m)
* Wreck B: 24°16’10″N 120°30’15″E (depth 18m)
* Both cleared to 28m clearance
2. Current patterns:
– Strong N-bound flood tide (max 3.2 knots at springs):
* Begins 2hrs before HW Taichung
* Peak at HW±1hr
* Slack water: 30min duration
– Eddy currents near No.2 (dangerous during ebb):
* Forms 24°16’30″N 120°30’00″E
* Max 4.1 knots surface current
* Decreases to 2 knots at 10m depth
– Tidal streams:
* Refer to Tidal Diamond A on charts
* Neaps: 1.5-2.0 knots
* Springs: 2.5-3.2 knots
* Direction variance: ±15°
3. Seasonal considerations:
– NE monsoon (Oct-Mar):
* Wind force 6-7 common (max 35kt)
* Wave height: 2.5-4.0m
* Recommended anchorages: No.3, No.5
– Typhoon season (Jun-Sep):
* Evacuation procedures:
– Stage 1 (72hr): Prepare for departure
– Stage 2 (48hr): Move to typhoon moorings
– Stage 3 (24hr): All vessels depart
* Designated typhoon anchorages:
– No.3 (Cat 1-2 storms)
– Emergency anchorage (Cat 3-4)
– Fishing season (Apr-Jun):
* Increased small boat traffic:
– 0500-0800LT: Outbound
– 1500-1800LT: Inbound
* Traffic separation: 1nm W of No.2 anchorage
4. Additional warnings:
– Fog occurrence (Nov-Feb):
* Visibility <1nm: 15% probability
* Radar assistance available
* Speed restriction: 5kt in anchorage areas
– Night navigation:
* Unlit fishing vessels common
* Mandatory: Radar watch at all times
* Recommended: Lookout doubling
– Military exercise areas:
* Occasional closures (NOTAM issued)
* Danger area D-12 (5nm SE of port)
* Active periods: 0800-1700LT weekdays
Final Emergency Contacts (24/7):
1. Port Control:
– Primary: VHF Ch 16/12
– Secondary: +886-4-2656-1888
– Email: portcontrol@twport.com.tw
2. Medical Emergency:
– VHF Ch 16 (Code Blue)
– Phone: +886-4-2656-1999
– Helicopter: +886-4-2656-1998
3. Pollution Response:
– VHF Ch 16/14 (Code Black)
– Phone: +886-4-2656-1881
– Spill Team: +886-4-2656-1882
4. Security:
– VHF Ch 16 (Code Red)
– Phone: +886-4-2656-1880
– Coast Guard: VHF Ch 22
5. LNG Emergency:
– Dedicated VHF Ch 18 (Code Green)
– Phone: +886-4-2656-1990
– Emergency Shutdown: +886-4-2656-1991
Final Operational Notes:
1. Anchorage Selection Criteria:
– Vessel type compatibility
– Weather window requirements
– Service availability
– Emergency preparedness level
2. Special Conditions:
– Typhoon season (Jun-Nov): Additional holding requirements
– Monsoon period (Dec-Feb): NE wind restrictions
– Fishing season (Mar-May): Increased small boat traffic
