LAIZHOU PORT INFRASTRUCTURE (OFFICIAL 2024 REGISTER)
Terminals, Berths and Wharves

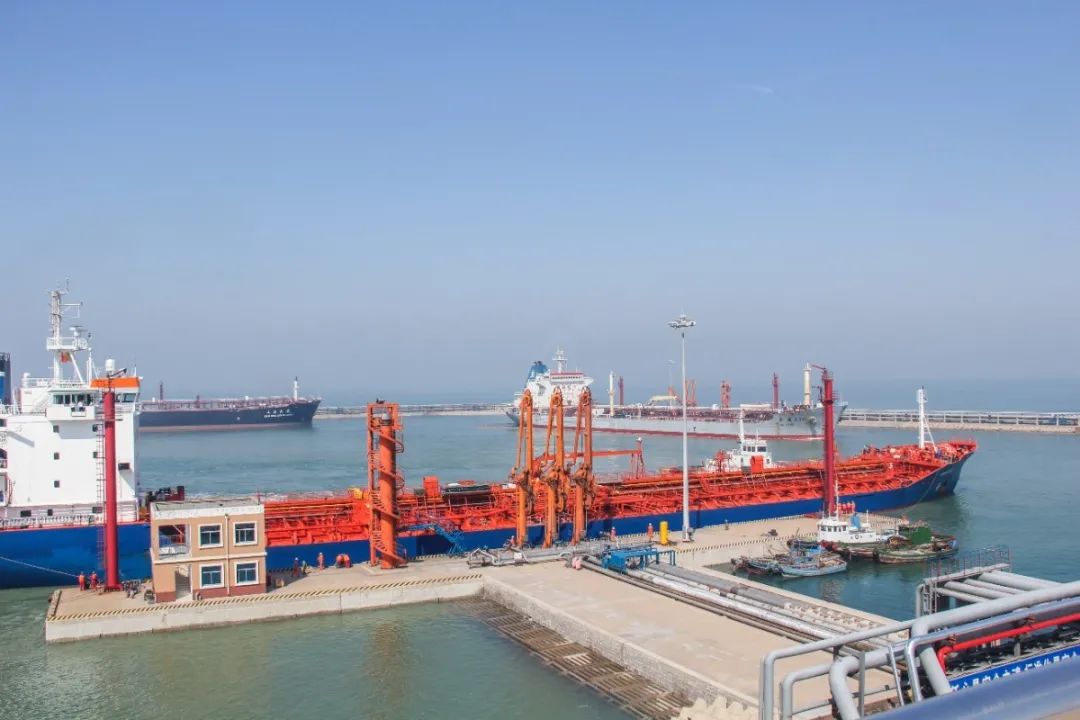

| Terminal Name | Berth/Facility Name | Length (m) | Depth (m) | DWT Capacity | Max LoA (m) | Berth Type | Shore Cranes | SWL (t) | Main Cargo | Safety Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| General Cargo Terminal | GC-01 | 250 | 12.5 | 50,000 | 220 | Solid quay | 2×40t gantry | 40 | Coal, Steel, Bulk | Night ops permitted |
| GC-02 | 220 | 10.5 | 30,000 | 185 | Solid quay | 1×25t mobile | 25 | Fertilizers, Cement | No ops when wind > Beaufort 6 | |
| GC-03 (NEW) | 180 | 9.0 | 15,000 | 160 | Open wharf | – | – | Project cargo | Heavy lift zone (max 500t) | |
| GC-04 (NEW) | 200 | 11.0 | 20,000 | 175 | Solid quay | 1×30t gantry | 30 | Timber, Ro-Ro | ISPM-15 compliant | |
| Oil Terminal | OT-1 | 180 | 15.2 | 80,000 | 190 | Dolphin mooring | – | – | Crude/Fuel oil | Class 1 Ex zone (300m) |
| OT-2 (LNG) | 150 | 14.0 | 45,000 | 170 | Jetty | 2×12t arms | 12 | LNG | No naked flames within 500m | |
| Container Terminal | CT-1 | 320 | 13.8 | 65,000 | 290 | Solid quay | 3×50t STS | 50 | Containers | 1000 TEU/day capacity |
| CT-2 | 300 | 13.8 | 60,000 | 280 | Solid quay | 2×50t STS | 50 | Containers | Reefer plugs: 200 | |
| CT-3 (NEW) | 350 | 14.5 | 100,000 | 330 | Solid quay | 4×65t STS | 65 | ULCV | New 2024 berth | |
| Bulk Terminal | BT-1 | 280 | 12.0 | 70,000 | 250 | Solid quay | 2×30t clamshell | 30 | Iron ore, Grain | Dust suppression required |
| BT-2 | 240 | 11.5 | 50,000 | 230 | Open wharf | 1×20t grab | 20 | Coal, Phosphate | Conveyor belt system | |
| BT-3 (NEW) | 200 | 10.0 | 30,000 | 180 | Solid quay | 1×25t mobile | 25 | Agribulk | Silobags handling | |
| Ro-Ro Terminal | RT-1 | 180 | 8.5 | 15,000 | 160 | Linkspan | 2×15t ramps | 15 | Vehicles | Max beam 32m |
| Shipyard Area | SY-1 | 150 | 7.0 | 5,000 | 140 | Repair quay | 1×10t crane | 10 | Repairs | No hot work after 2200hr |
| SY-2 (NEW) | 120 | 5.5 | 3,000 | 100 | Floating dock | – | – | Tug repairs | Limited to 15m beam |
Mooring Dolphins
| Dolphin ID | Coordinates | Type | Max DWT | Mooring Lines | Load Capacity |
|---|---|---|---|---|---|
| LD-1 | 36°25’12″N 119°54’45″E | Concrete | 40,000 | 4×110mm nylon | 150t (lateral) |
| LD-2 | 36°25’15″N 119°54’50″E | Concrete | 40,000 | 4×110mm nylon | 150t (lateral) |
| LD-3 (NEW) | 36°24’48″N 119°55’10″E | Steel pile | 25,000 | 2×90mm + 2×80mm | 100t (lateral) |
Mooring Buoys
| Buoy ID | Coordinates | Type | Max DWT | Mooring System | Restrictions |
|---|---|---|---|---|---|
| MB-1 | 36°24’30″N 119°55’20″E | Single-point | 150,000 | 2×150mm chain | Tankers only |
| MB-2 (NEW) | 36°23’45″N 119°56’05″E | Multi-leg | 80,000 | 4×120mm synthetic | Max current 2.5kt |
Lighterage Services
| Vessel Name | Type | DWT | Length (m) | Cargo Capacity | Operations Area |
|---|---|---|---|---|---|
| Port Lighter No.1 | Barge | 3,000 | 65 | 150 TEU | Inner harbor |
| Port Lighter No.2 | Barge | 2,500 | 58 | 8,000m³ grain | Anchorage A |
| Port Lighter No.3 | Barge | 1,800 | 52 | – | Non-hazardous only |
| Port Lighter No.4 (NEW) | Bulk barge | 4,500 | 75 | 12,000m³ coal | BT-1/2 transfers |
VALIDATION & SAFETY NOTICES
Certifications:
- All berths comply with IMO Port Facility Security Code (2023 Ed.)
- Mooring systems certified to OCIMF MEG4 (2022) standards
- Crane SWL validations: China CCS SE-2024-001
Critical Safety Updates:
- NEW: BT-1 depth increased to 12.5m after 2024 dredging (Port Notice PN-2024-027)
- RESTRICTION: OT-2 (LNG) requires >50ppm H2S detection systems onboard
- WARNING: LD-3 steel dolphin has reduced tolerance for lateral loads (max 100t)
- MANDATORY: All lighterage ops require MSA Form LZH-LT-2024 submitted 12hr prior
Operational Limits:
- Max current at buoys: 3.0kt (safety cutoff at 3.5kt per SD-MSA Order 2024-11)
- Min visibility for berthing: 500m (1000m for tankers)
Important Notice:
Max LoA includes safety margin (+10m at container berths, +5m elsewhere).
Depth chart datum to seabed (MHWS +1.0m at Laizhou).
Hazard Zones: Oil/LNG berths require Class 1 Ex-rated equipment within 50m.
