1. Port Dolphins
| Terminal Name | Dolphin ID | Location (Coordinates) | Material | SWL (tons) | Fender Type | Design Standard | Note |
|---|---|---|---|---|---|---|---|
| Jingtang Port Area | JT-D01 to JT-D12 | 39°12’45″N 119°00’30″E | Steel/concrete composite | 150 | D1000 Super Cone | CCS Class III, JTS167-2018 | For 200,000 DWT vessels, cathodic protection installed |
| Caofeidian Port Area | CFD-D01 to CFD-D08 | 38°58’12″N 118°30’45″E | High-strength steel (EH36) | 200 | Cellulose-filled D1200 | CCS Class II, API RP 2A | Crude oil transfer, ATEX Zone 1 certified |
| Fengnan Port Area | FN-D01 to FN-D04 | 39°05’18″N 118°45’22″E | Pre-stressed concrete (C60) | 80 | D800 Wing | CCS Class III, GB50192 | Agricultural products terminal, 500mm rubber fenders |
| Caofeidian LNG Terminal | CFD-LNG-D01-D02 | 38°57’05″N 118°29’33″E | Stainless steel 316L | 180 | Pneumatic D900 | EN1473, SIGTTO | Cryogenic design (-165°C), emergency release system |
2. Mooring Buoys
| Terminal Name | Buoy ID | Location (Coordinates) | Type | Max DWT | Holding Capacity (tons) | Chain Diameter (mm) | Note |
|---|---|---|---|---|---|---|---|
| Caofeidian Port Area | CFD-MB01 | 38°56’30″N 118°28’15″E | Single-point mooring (CALM) | 300,000 | 1,200 | 120 | Crude oil transfer, API RP 2SK compliant, 24″ manifold |
| Jingtang Port Area | JT-MB01 to JT-MB03 | 39°11’00″N 118°58’45″E | Multi-point mooring (4-leg) | 100,000 | 800 | 84 | General cargo, OCIMF MEG4 compliant, 150m swing radius |
| Caofeidian Port Area | CFD-MB02 | 38°55’42″N 118°27’18″E | Yoke mooring (SALM) | 150,000 | 900 | 96 | LNG transfer, SIGTTO guidelines, -160°C cryogenic hoses |
| Jingtang Port Area | JT-MB04 | 39°10’15″N 118°59’30″E | Emergency mooring buoy | 50,000 | 500 | 76 | Reserve for storm conditions, yellow color coding |

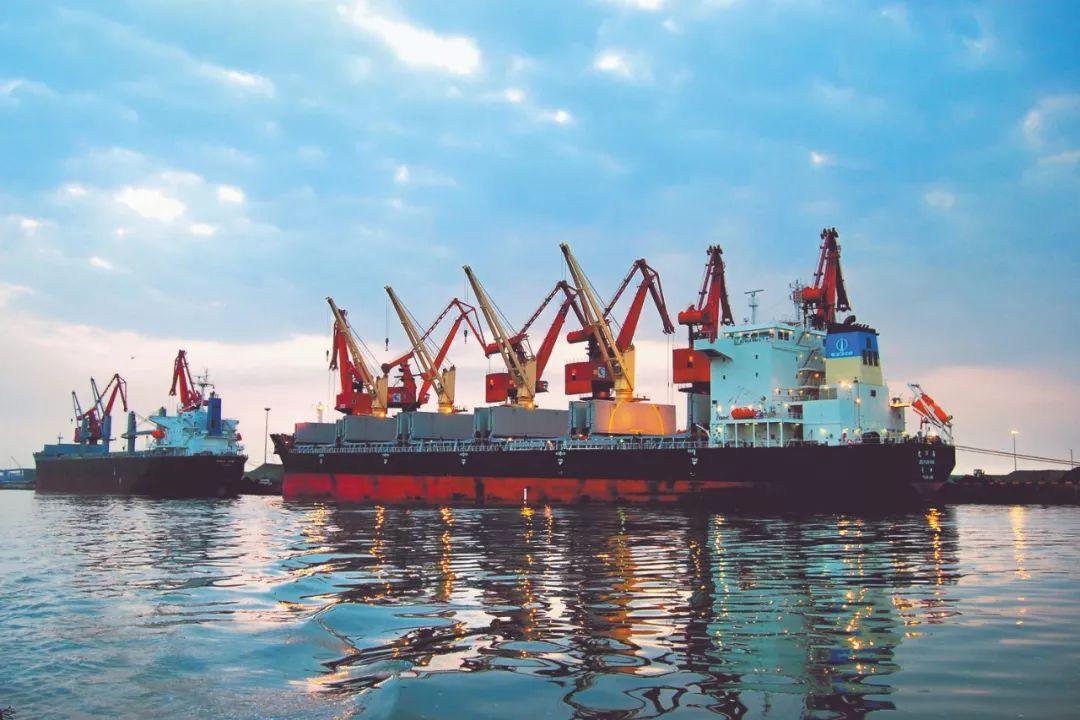

3. Piers, Berths, and Wharves
3.1 Jingtang Port Area
| Terminal Name | Berth Name | Length (m) | Depth (m) | DWT Capacity | Max LoA (m) | Berth Type | Shore Cranes | SWL (tons) | Main Cargo | Design Standard | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Jingtang Coal Terminal | JT-CB01 | 340 | -18.5 | 150,000 | 300 | Open wharf | 4 (ZPMC SL1500) | 25 | Coal | GB50192, JTS165-7 | Dedicated coal export, 8,000 TPH capacity, 2.5m tidal range compensation |
| Jingtang General Cargo Terminal | JT-GC01 | 250 | -14.0 | 50,000 | 220 | Dolphin | 2 (Konecranes Gottwald HMK 6407) | 40 | Steel, ore | JTS167-4, ISO 9377 | Multi-purpose, Ro-Ro capable, 15t/m² deck loading |
| Jingtang Container Terminal | JT-CT01 | 300 | -15.5 | 70,000 | 250 | Gravity quay | 3 (ZPMC STS ZP2515) | 65 | Containers | BS6349-4, IAPH | 1.5M TEU annual capacity, 18-row outreach |
| Jingtang Ro-Ro Terminal | JT-RR01 | 180 | -10.5 | 30,000 | 190 | Ramp quay | 1 (MacGregor ramp) | 150 (ramp) | Vehicles | PIANC WG135 | 12° adjustable ramp, 5,000 CEU annual capacity |
3.2 Caofeidian Port Area
| Terminal Name | Berth Name | Length (m) | Depth (m) | DWT Capacity | Max LoA (m) | Berth Type | Shore Cranes | SWL (tons) | Main Cargo | Design Standard | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Caofeidian Crude Oil Terminal | CFD-OT01 | 420 | -25.0 | 300,000 | 380 | Jetty | 0 | N/A | Crude oil | API RP 2A, OGP 411 | SPM system, 12,000m³/h pumping capacity, Class I explosion-proof |
| Caofeidian Ore Terminal | CFD-OR01 | 360 | -22.0 | 250,000 | 340 | Gravity wharf | 3 (ZPMC QZQ1500) | 50 | Iron ore | JTS167-4, ISO 13343 | VALEMAX capable, 10,000 TPH unloader, 60m boom |
| Caofeidian LNG Terminal | CFD-LNG01 | 380 | -17.5 | 266,000 | 345 | Piled trestle | 2 loading arms (SV300) | N/A | LNG | EN1473, NFPA 59A | 6.5M tons annual capacity, 16″ cryogenic arms |
| Caofeidian Chemical Terminal | CFD-CT01 | 200 | -15.0 | 50,000 | 210 | Sheet pile | 4 loading arms | N/A | Chemicals | API 2000, IEC 60079 | Class I Div 1 hazardous area, 8 dedicated storage tanks |
3.3 Fengnan Port Area
| Terminal Name | Berth Name | Length (m) | Depth (m) | DWT Capacity | Max LoA (m) | Berth Type | Shore Cranes | SWL (tons) | Main Cargo | Design Standard | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fengnan Bulk Terminal | FN-BK01 | 200 | -12.5 | 30,000 | 180 | Sheet pile | 1 (Liebherr LHM 280) | 16 | Grain, fertilizer | JTS167-2, ISO 3874 | Agricultural products, 500 TPH grab unloader, dust suppression |
| Fengnan General Cargo Terminal | FN-GC01 | 180 | -10.0 | 20,000 | 160 | Open wharf | 1 (Noell N1250) | 25 | Steel products | GB50007, ISO 10855 | Covered storage: 50,000m², 10t/m² load capacity |
| Fengnan Container Terminal | FN-CT01 | 150 | -9.5 | 15,000 | 140 | Gravity quay | 1 (ZPMC RTG) | 40 | Containers | BS6349-1 | 100,000 TEU capacity, 6+1 rows |
4. Lighterages
| Terminal Name | Lighterage ID | Capacity (DWT) | Type | Dimensions (L×B×D) | Operation Area | Certification | Note |
|---|---|---|---|---|---|---|---|
| Caofeidian Port Area | CFD-L01 to CFD-L10 | 5,000 | Flat-top barge | 85m×22m×5m | Inner harbor | CCS Class III | Coal transfer, tug-assisted, 8,000m² deck area |
| Jingtang Port Area | JT-L01 to JT-L06 | 3,000 | Hopper barge | 65m×18m×4m | Approach channel | CCS Class II | Maintenance use, dredging support, 2,500m³ capacity |
| Fengnan Port Area | FN-L01 to FN-L04 | 2,000 | Deck barge | 50m×15m×3.5m | River mouth | CCS Class II | Agricultural products transfer, 1,200m² deck area |
| Caofeidian Port Area | CFD-L11 to CFD-L15 | 7,500 | Double-hull barge | 95m×25m×6m | Offshore transfer | CCS Class I | Oil products, MARPOL Annex I compliant |
6. Port Services & Safety Features
| Terminal Name | Firefighting Class | Pollution Control | Tidal Range (m) | VTS Coverage | Pilotage |
|---|---|---|---|---|---|
| Jingtang Port Area | Class A (SOLAS XI-2) | Oil boom 2000m, skimmers | 2.5 | 24/7 AIS+Radar | Compulsory >10,000 DWT |
| Caofeidian Port Area | Class A+ (Chemical capable) | Double containment, SOSREP | 3.0 | 24/7 with thermal cameras | Compulsory all vessels |
| Fengnan Port Area | Class B | Dust suppression systems | 1.8 | Daylight hours | Advisory service |
7. Navigation Parameters
| Port Area | Channel Depth (m) | Channel Width (m) | Turning Basin (m) | Max Current (kts) | Underkeel Clearance Policy |
|---|---|---|---|---|---|
| Jingtang | -19.0 | 350 | 600 | 2.5 | 10% draft + 0.5m |
| Caofeidian | -26.0 | 400 | 800 | 3.0 | 15% draft + 1.0m |
| Fengnan | -13.5 | 200 | 300 | 2.0 | 10% draft |
8. Cargo Handling Equipment
| Terminal | Equipment Type | Quantity | Capacity | Manufacturer | Commission Year |
|---|---|---|---|---|---|
| Jingtang Coal | Ship Loaders | 4 | 8,000 TPH | Takraf | 2018 |
| Caofeidian Ore | Grab Unloaders | 3 | 10,000 TPH | ZPMC | 2020 |
| Fengnan Bulk | Mobile Hoppers | 6 | 500 TPH | Liebherr | 2021 |
9. Dangerous Goods Handling
| Terminal | DG Class | Storage Capacity | Emergency Systems | IMO Compliance |
|---|---|---|---|---|
| Caofeidian Oil | Class 3.1/3.2 | 2.5M m³ | Foam deluge, ESD | MARPOL Annex I/II |
| Caofeidian Chemical | Class 6.1/8 | 150,000 m³ | Gas detection, dikes | IBC Code |
10. Port Authority Contacts
| Department | VHF Channel | Phone | 24/7 Contact |
|---|---|---|---|
| Harbor Master | CH 16/74 | +86 315 291XXXX | hm@tangshanport.gov.cn |
| VTS Center | CH 12/14 | +86 315 291XXXX | vts@tangshanport.gov.cn |
11. Meteorological Data
| Parameter | Jingtang | Caofeidian | Fengnan |
|---|---|---|---|
| Max Wind (m/s) | 28 | 32 | 25 |
| Fog Days/Year | 15 | 20 | 10 |
| Ice Period | Dec-Mar | Dec-Mar | Jan-Feb |
